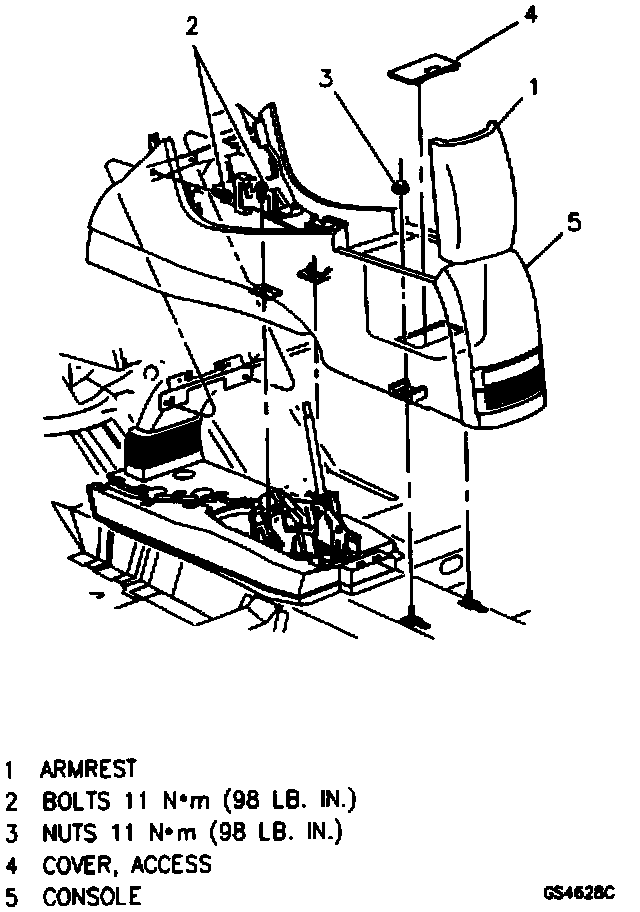

Console Replacement
Description:
Remove or Disconnect 1.
Shifter trim plate.
2.
Nuts (3), bolts (2).
3.
Electrical connectors from
console.
4.
Console (5)
Install or Connect 1.
Console (5) to vehicle.
2.
Electrical connectors to
console.
3.
Nuts (3), bolts (2).
4.
Shifter trim plate.
