Left

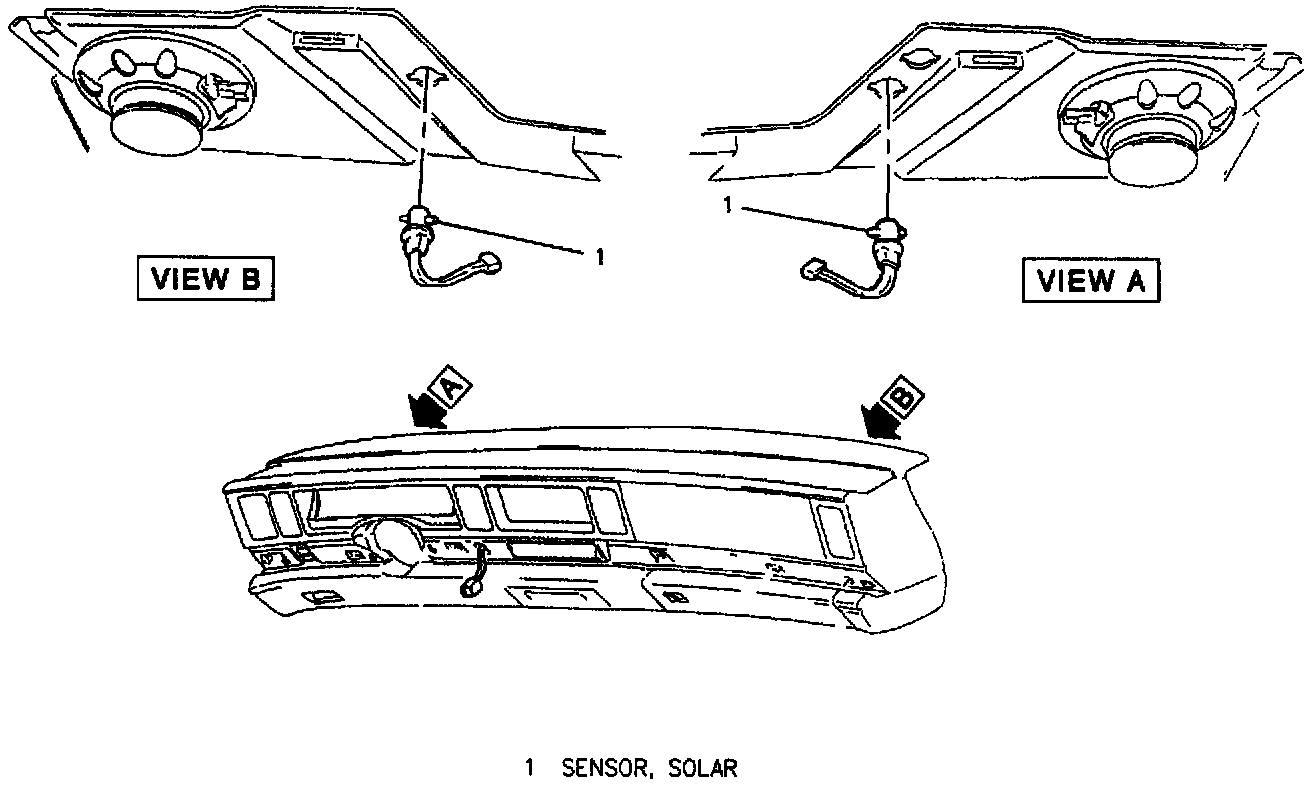

Right And Left Sun Load Sensors:

Remove or Disconnect

1. IP upper trim panel reveal covers.
^ Gently pry up and rearward.
2. IP upper trim panel retainer screws and panel.
3. Left speaker retainer screws and speaker.
^ With speaker option UQ8 only.
4. Left sun load sensor.
^ Reach through speaker hole to release sensor by turning 1/4 turn and to access connector.
5. Electrical connector.

Install or Connect

1. Electrical connector.
2. Left sun load sensor.
^ Reach though speaker hole to install sensor by turning 1/4 turn.
3. Left speaker and retainer screws.
4. IP upper trim panel and retaining screws.
5. Trim panel reveal covers (snap in).
