Door Module






Removal Procedure

1. Remove the door trim panel. Service and Repair
2. Disconnect the electrical connectors.

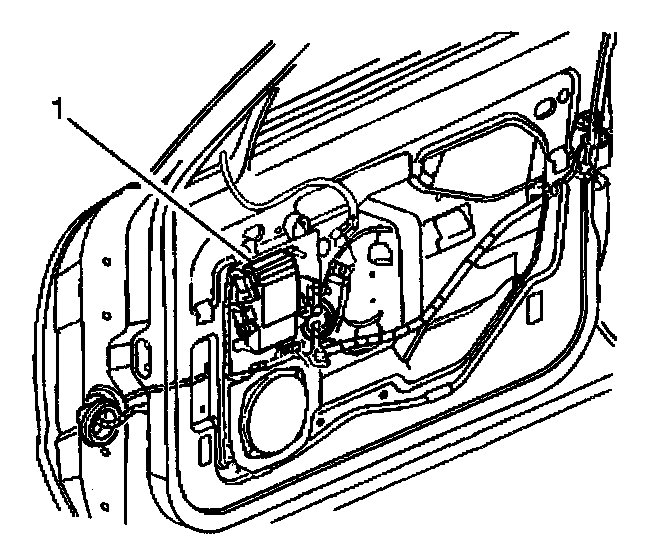

3. Remove the nuts from the door module (1).
4. Remove the module.

Installation Procedure

1. Align the door module to the door (1).
^ Install the fasteners.
2. Connect the electrical connectors.
3. Install the door trim panel.
