Power Mirror Switch






Removal Procedure

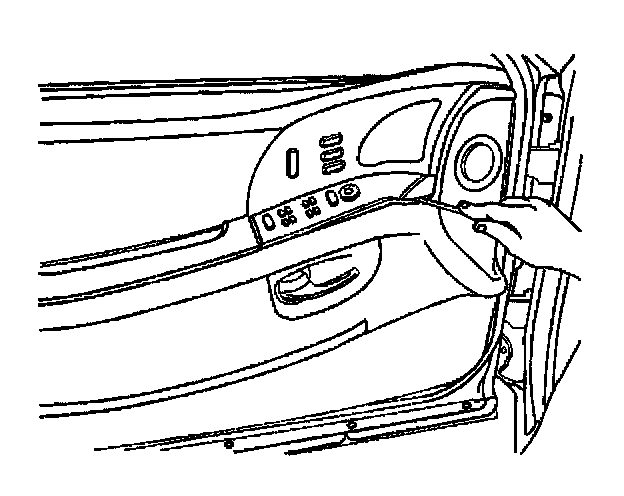

1. Remove the switch assembly from the trim panel by completing the following steps:
1.1. Unsnap the front tab using a thin-bladed tool
1.2. Lift the switch assembly up and out of the armrest.
2. Disconnect the electrical connector.
3. Remove the switch from the bezel by releasing the tabs.

Installation Procedure

1. Snap the switch into the bezel.
2. Connect the electrical connector.
3. Install the rear tab into the trim panel by completing the following steps:
3.1. Press the rear tab down.
3.2. Snap the front tab into position in the armrest.
