Door Control Module Replacement - Front

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Remove the door trim panel.
2. Disconnect the electrical connectors.

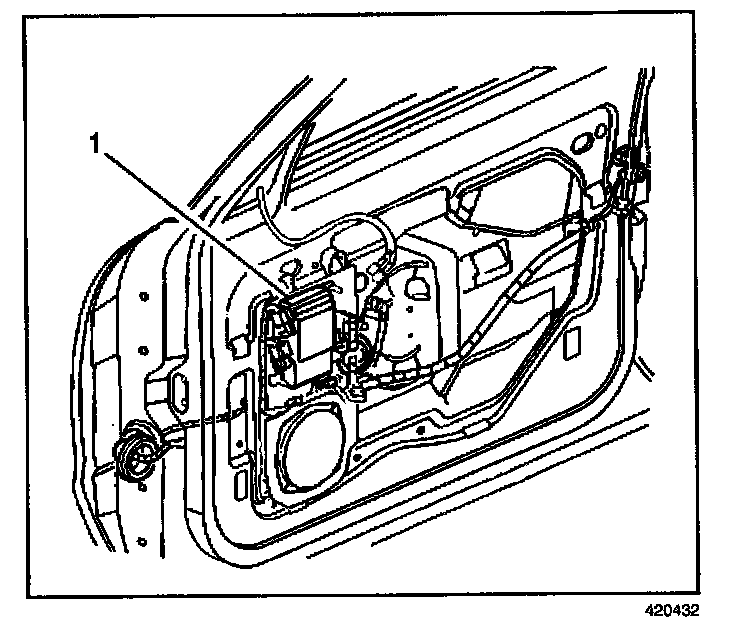

3. Remove the nuts from the door module (1).
4. Remove the module.

INSTALLATION PROCEDURE




1. Align the door module to the door (1). Install the nuts in order to secure the module to the door.
2. Connect the electrical connectors.
3. Install the door trim panel.
4. Connect the negative battery cable.
