Antenna, Radio: Service and Repair

Antenna Amplifier Replacement

REMOVAL PROCEDURE




1. Remove the headliner.
2. Remove the rear shelf trim.
3. Disconnect the radio antenna amplifier lead from the rear window antenna.




4. Disconnect the radio antenna amplifier lead from the body wiring harness antenna lead.
5. Remove the tape from the radio antenna amplifier leads.

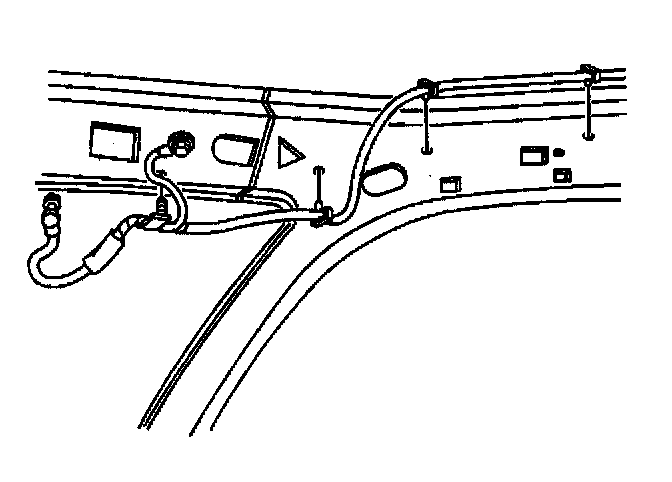

6. Remove the bolt from the antenna amplifier.
7. Remove the antenna amplifier from the roof inner side rail.




8. Disconnect the antenna amplifier lead from the windshield.




9. Remove the antenna amplifier harness retainers from the roof inner side rail.




10. Remove the bolt to the antenna amplifier ground lead.
11. Remove the antenna amplifier ground lead from the roof inner side rail.
12. Remove the antenna amplifier harness from the vehicle.

INSTALLATION PROCEDURE




1. Install the antenna amplifier harness to the vehicle.




2. Install the antenna amplifier harness retainers to the roof inner side rail.




3. Connect the antenna amplifier lead to the windshield.




4. Install the antenna amplifier ground lead to the roof inner side rail.

NOTE: Refer to Fastener Notice in Cautions and Notices.

5. Install the bolt to the antenna amplifier ground lead.

Tighten
Tighten the bolt to the antenna amplifier ground lead to 2 N.m (18 in lb).




6. Install the antenna amplifier to the roof inner side rail.
7. Install the bolt to the antenna amplifier.

Tighten
Tighten the bolt to the antenna amplifier to 2 N.m (18 in lb).




8. Connect the radio antenna amplifier lead to the body wiring harness antenna lead.




9. Connect the radio antenna amplifier lead to the rear window antenna.




10. Apply new tape to the radio antenna amplifier leads.
11. Install the rear shelf trim.
12. Install the headliner.
