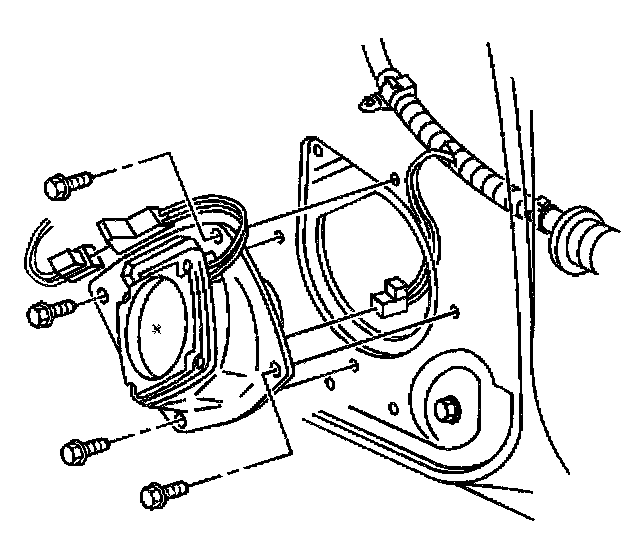

Speaker Replacement - Front Door

REMOVAL PROCEDURE
1. Remove the front door inner trim panel.
2. Remove the screws from the front door speaker.
3. Disconnect the electrical connector from the front door speaker.
4. Remove the speaker from the front door.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the front door speaker.
2. Install the speaker to the front door.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the screws to the front door speaker.

Tighten
Tighten the front door speaker screws to 2 N.m (18 lb in).

4. Install the front door inner trim panel.
