Rubber Conduit Replacement - Front Door

REMOVAL PROCEDURE

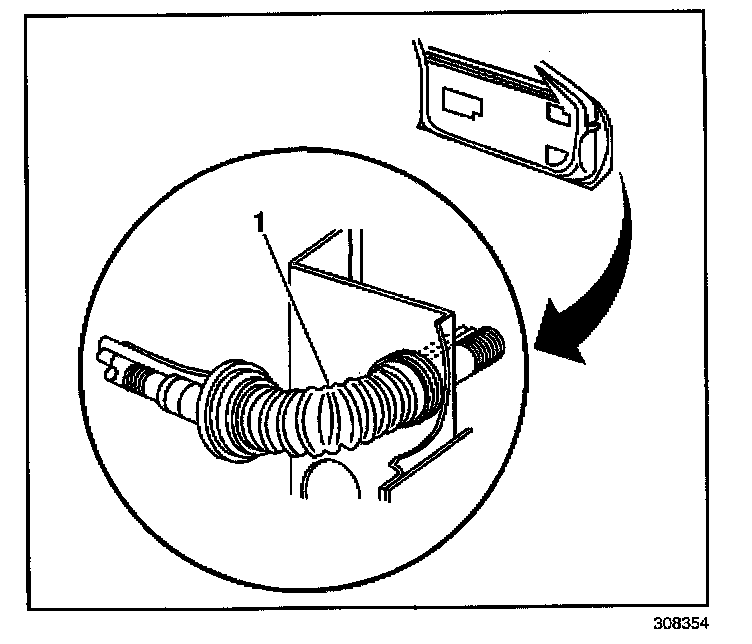

1. Remove the door rubber conduit from where it attaches at the the A-pillar.
2. Carefully pull the wire harness out from the A-pillar to expose the harness connector.
3. Disconnect the door wiring harness electrical connector.
4. Remove the conduit from the door and remove it from the electrical harness.

INSTALLATION PROCEDURE

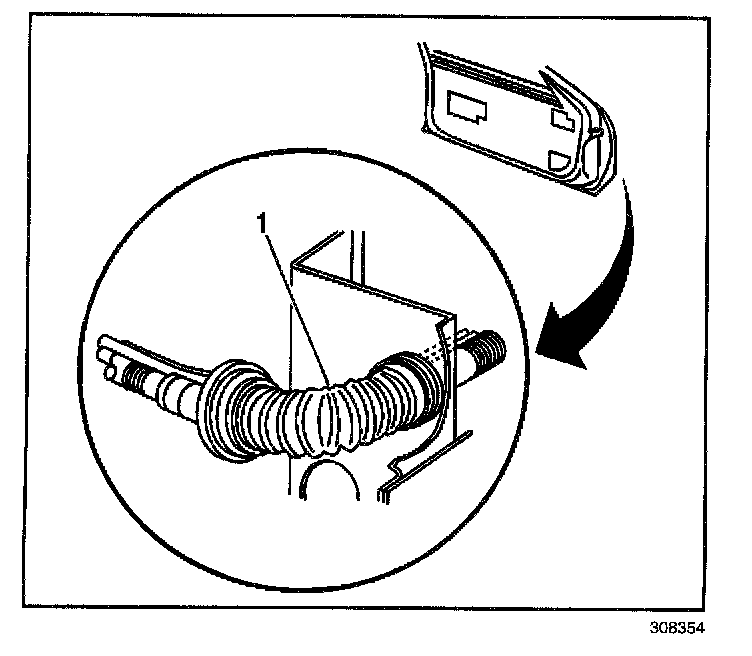

1. Thread the door electrical harness through the rubber conduit.
2. Install the conduit onto the door.
3. Connect the door wiring harness electrical connector.
4. Install the conduit to the A-pillar.
