Home >> Buick >> 1999 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram >> Outside Rearview Mirror (RH)

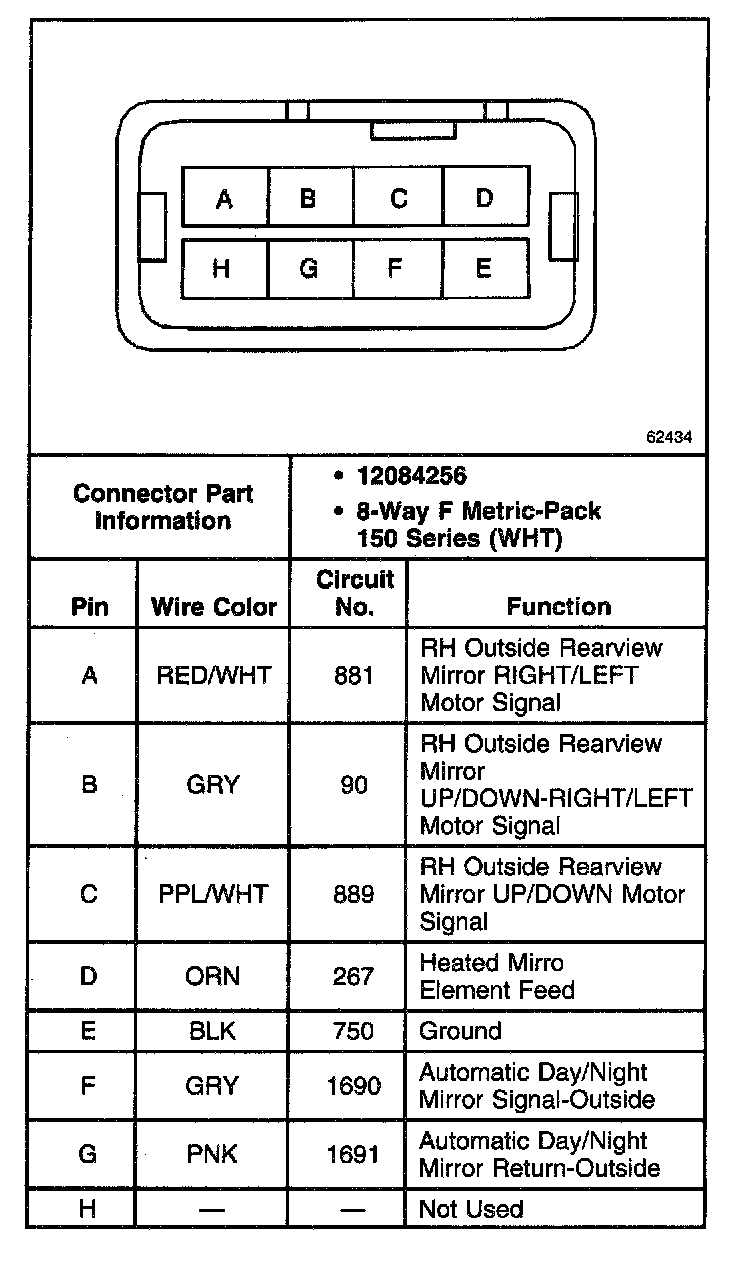

Outside Rearview Mirror (RH)

Outside Rearview Mirror (RH):
