Home >> Buick >> 1999 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Schematics By Component Name >> Fuses >> STR WHL CTRL

STR WHL CTRL

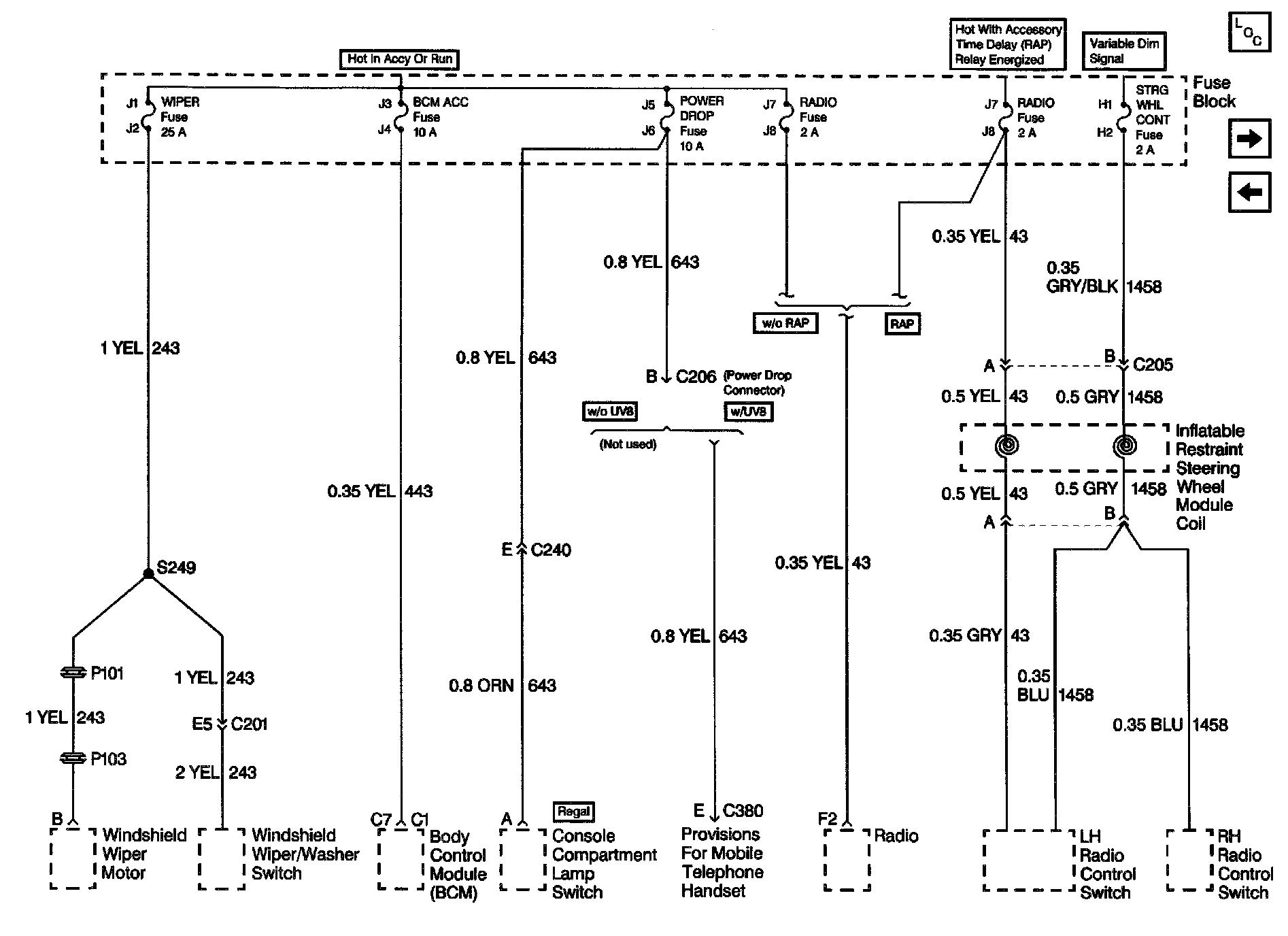

Fuse Block Details Schematics: Wiper, BCM ACC, Power Drop, Radio And STRG WHL CONT Fuses:
