Radiator Air Baffle Assemblies and Deflectors (Side)

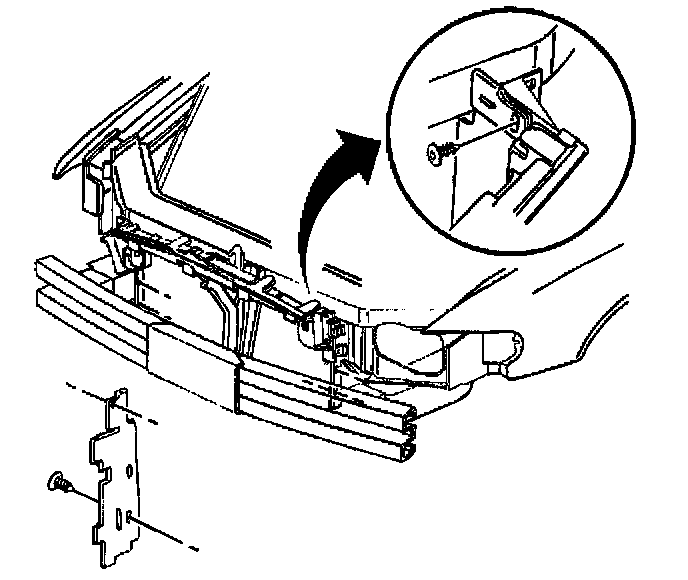

Removal Procedure





1. Raise the Hood.

Important: Left side shown the right side is opposite.

2. Remove the radiator side air baffle push-in retainers.
3. Remove the radiator side air baffle(s).

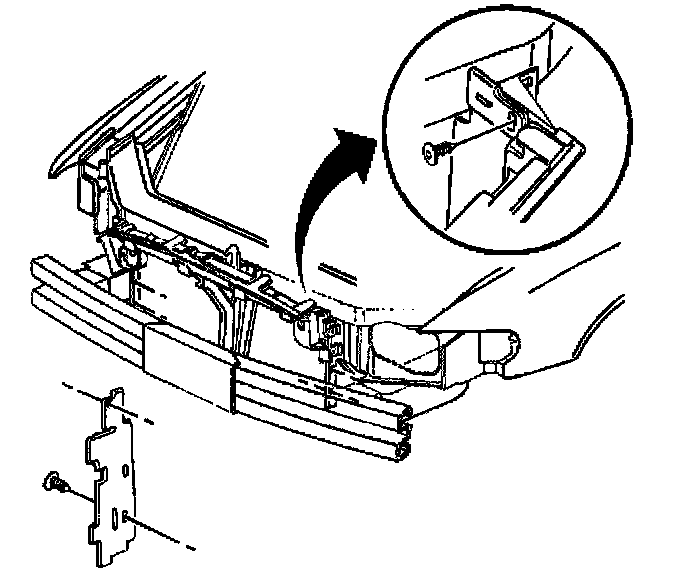

Installation Procedure





1. Install the radiator side air baffle(s) to the vehicle.
2. Install the radiator side air baffle push-in retainers.
3. Lower the hood.
