24. Balance Shaft Removal

^ Tools Required
- J 6125-1B Slide Hammer

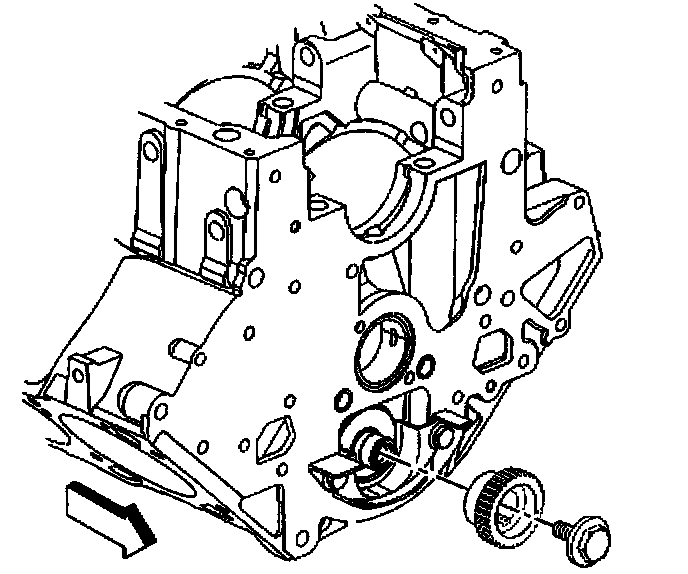

1. Remove the balance shaft driven gear bolt.
2. Remove the balance shaft driven gear.





3. Remove the balance shaft retainer bolts.
4. Remove the balance shaft retainer.

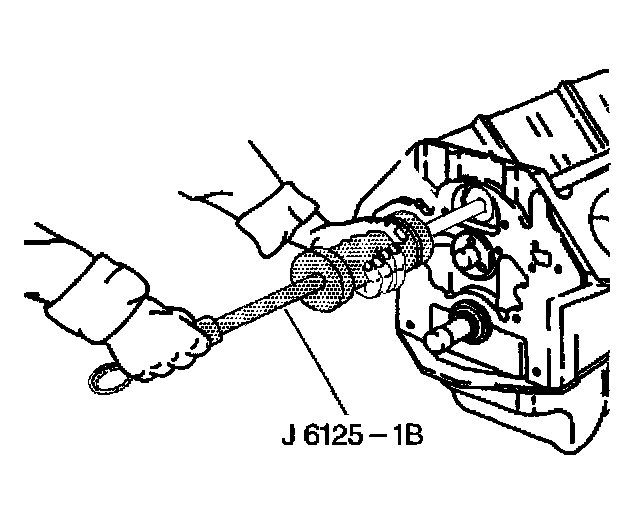

5. Use J 6125-1B to remove the balance shaft.
