27. Oil Pan Removal

Notice: Remove the oil level sensor, located in the oil pan, before the oil pan is removed. The sensor may be damaged if the oil pan is removed first.

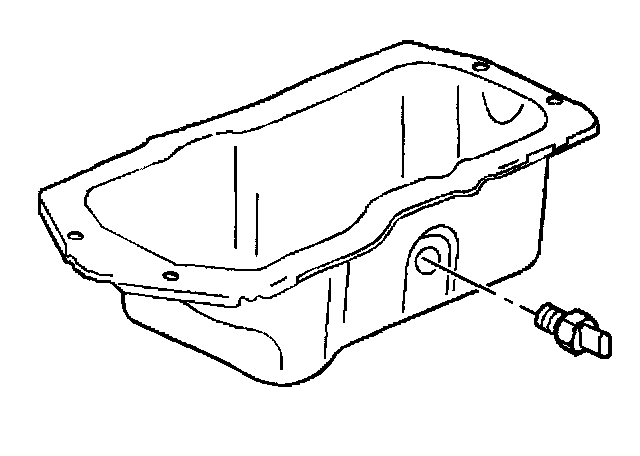

1. Remove the oil level sensor.

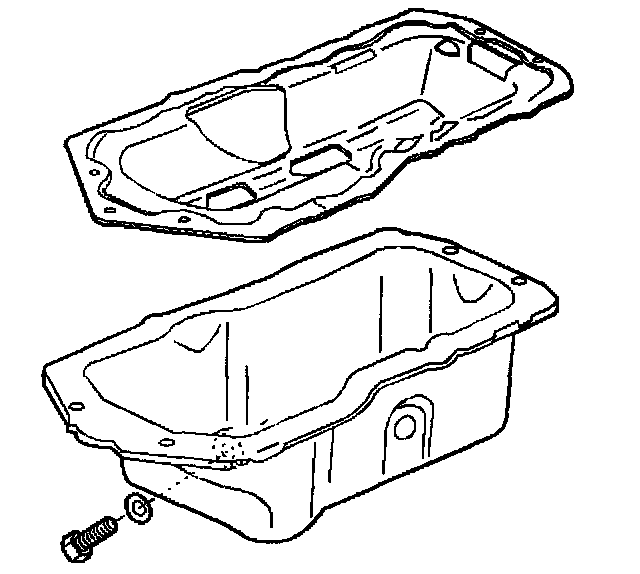

2. Remove the oil pan bolts.
3. Remove the oil pan.
4. Remove the oil pan gasket.
