43. Camshaft Bearing Installation

^ Tools Required
- J 33049 Camshaft Bearing Installer





1. Select the camshaft bearings.

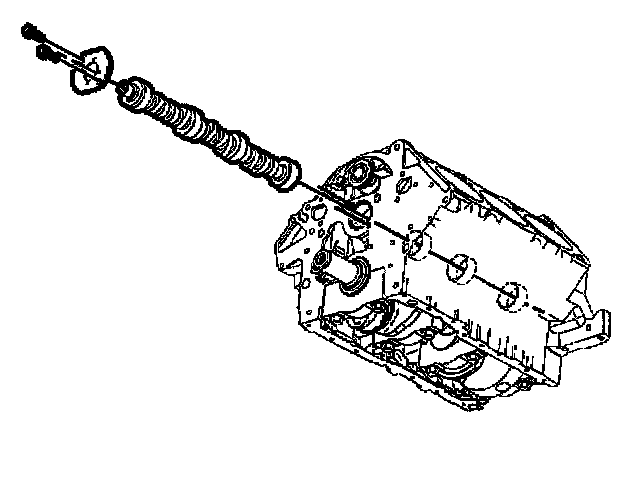

2. Use the following procedure to install the camshaft bearings:
2.1. Assemble J 33049 according to the manufacturer's instructions.
2.2. Place the bearing on the tool.

Notice: Severe engine damage may result if the oil holes are not correctly aligned.

2.3. Index the bearing oil holes with the engine block oil passages.
