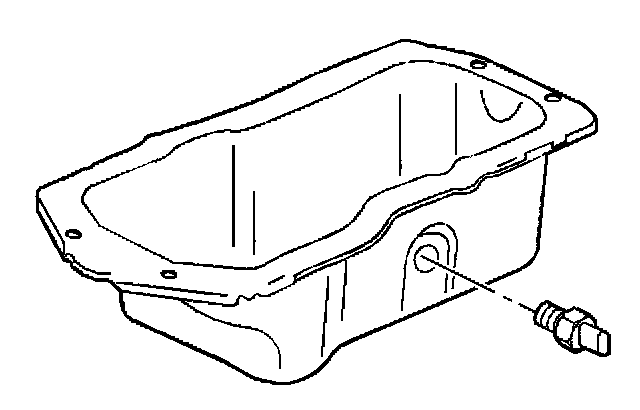

53. Oil Pan Clean and Inspect





^ Clean the oil pan mating surface.
^ Clean the oil pan. Remove all the sludge and the oil deposits.
^ Inspect the threads for the oil level sensor and the engine oil drain plug.
^ Inspect the oil pan for dents or distortion.
^ Repair or replace the oil pan as necessary.
