63. Engine Block Plug Installation

Notice: Refer to Fastener Notice in Service Precautions.

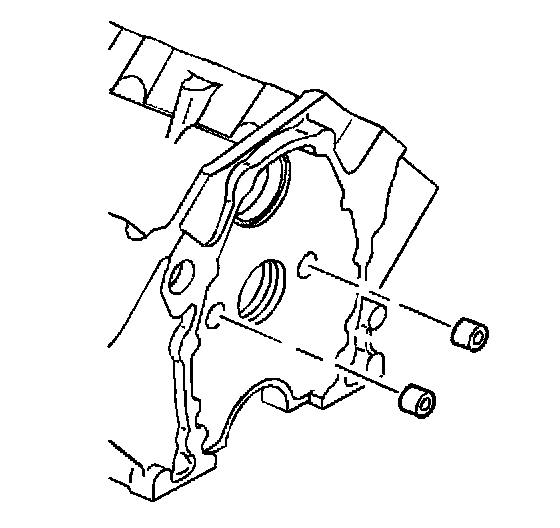

1. Install the threaded oil jacket plugs.
Tighten the oil jacket plugs to 30 Nm (22 ft. lbs.).

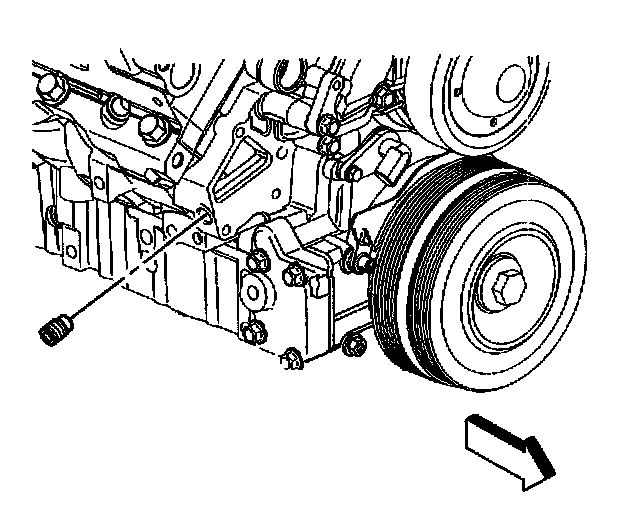

2. Install the remaining oil gallery plugs using GM P/N 12345493 threadlocker or equivalent.
