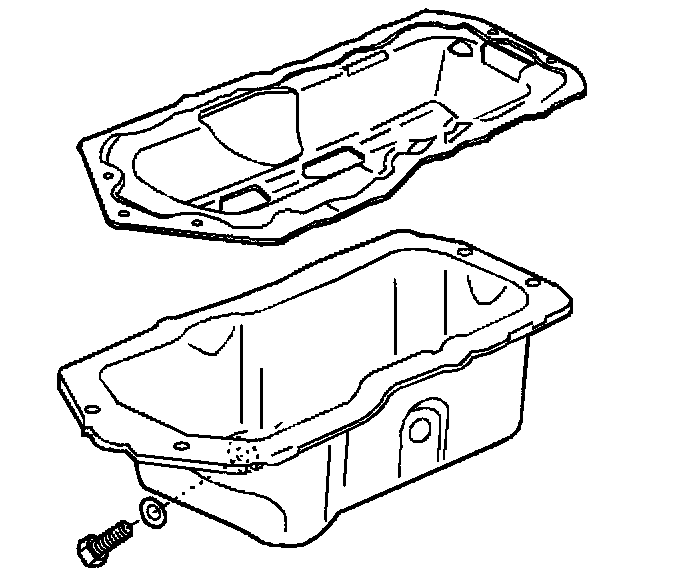

67. Oil Pan Installation

1. Install the oil pan gasket to the oil pan flange.
2. Install the oil pan.
3. Clean the oil pan bolts.
4. Apply one drop of GM P/N 12345382 to each bolt.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the oil pan bolts.
Tighten the bolts to 14 Nm (125 inch lbs.).

Notice: Install the oil level sensor, located in the oil pan, after the oil pan is installed. The sensor may be damaged if the oil level sensor is installed first.

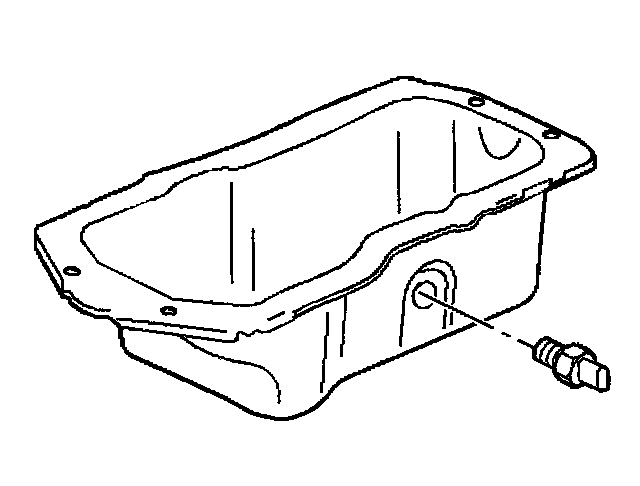

6. Install the oil level sensor.
Tighten the oil level sensor to 20 Nm (15 ft. lbs.).
