71. Crankshaft Rear Oil Seal Installation

^ Tools Required

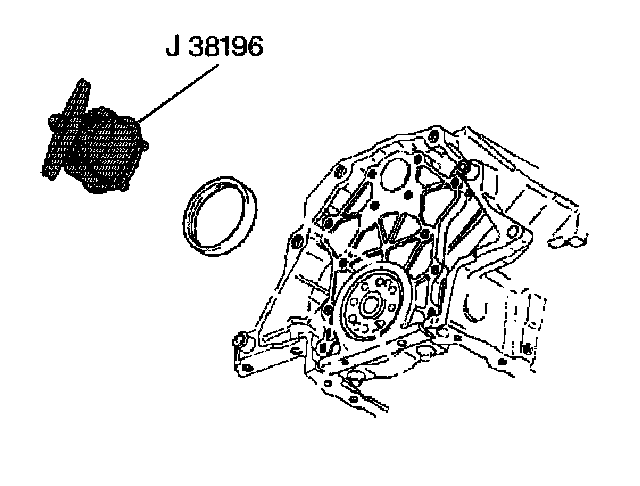

- J 38196 Crankshaft Rear Oil Seal Installer





1. Apply engine oil to the inside diameter and the outside diameter of the crankshaft rear oil seal.

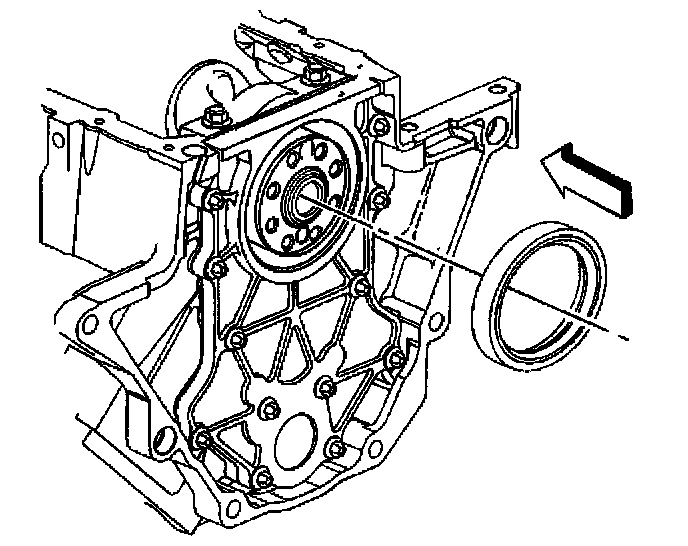

2. Slide the crankshaft rear oil seal over the mandrel until the back bottoms squarely against the collar of the tool.





3. Use the following procedure to install the seal:

Notice: Refer to Fastener Notice in Service Precautions.

3.1. Attach J 38196 to the crankshaft by hand or tighten attaching screws to 5 Nm (54 inch lbs.).
3.2. Turn the T handle of J 38196 so the collar pushes the crankshaft rear oil seal into the bore. Turn the handle until the tool is bottomed out. Ensure the crankshaft rear oil seal is seated properly.
3.3. Loosen the T handle of J 38196 until it comes to a stop.
3.4. Remove the attaching screws.
