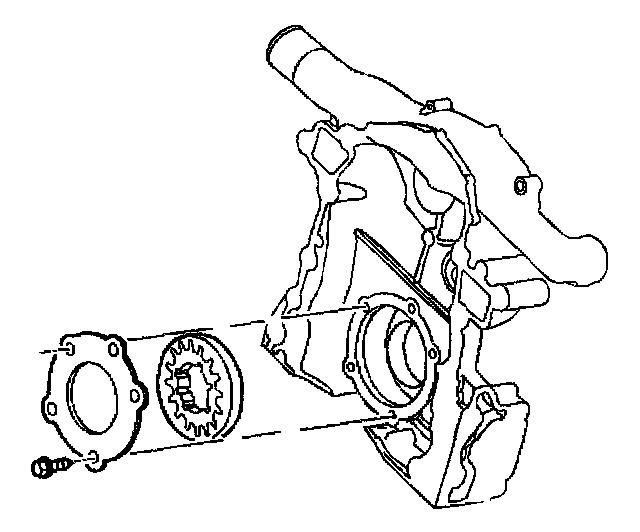

73. Oil Pump Cover and Gear Set Installation

1. Lubricate the oil pump gears with petroleum jelly.
2. Install the oil pump gears.
3. Pack the oil pump cavity with petroleum jelly.
4. Install the oil pump cover.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the oil pump cover screws.
Tighten the screws to 11 Nm (98 inch lbs.).
