87. Intake Manifold Installation - Upper

1. Install the upper intake manifold gasket.
2. Install the upper intake manifold.

Notice: Refer to Fastener Notice in Service Precautions.

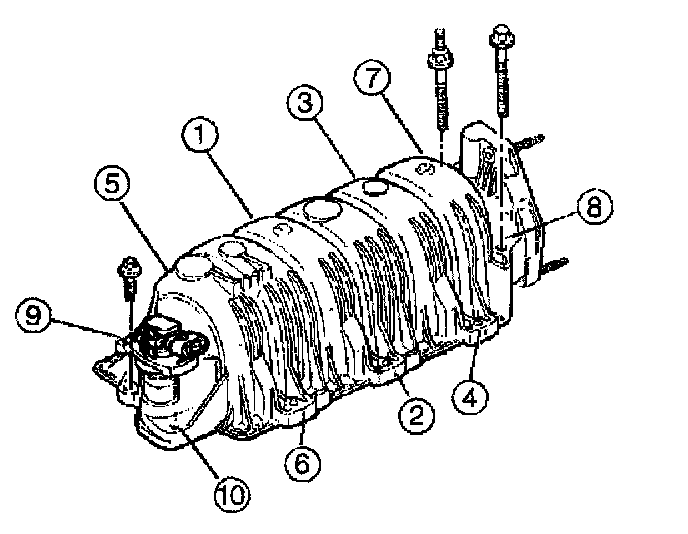

3. Install the upper intake manifold bolts.
Tighten the upper intake manifold bolts in sequence to 10 Nm (89 inch lbs.).

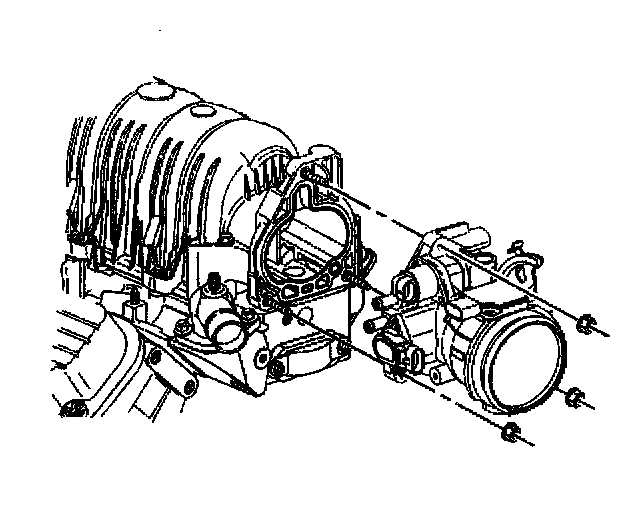

4. Install the throttle body.
5. Install the throttle body nuts.
Tighten the throttle body nuts to 10 Nm (89 inch lbs.).

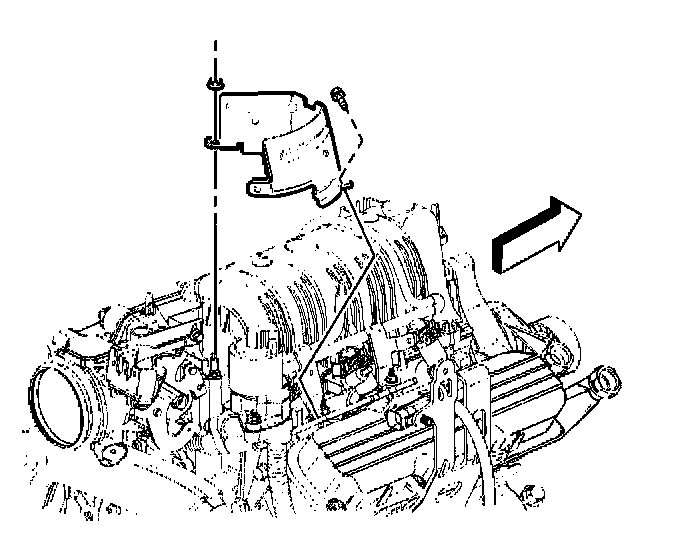

6. Install the engine wiring harness heat shield bracket.
7. Install the engine wiring harness heat shield bracket bolt and nut.
Tighten the engine wiring harness heat shield bracket bolt and nut to 10 Nm (89 inch lbs.).

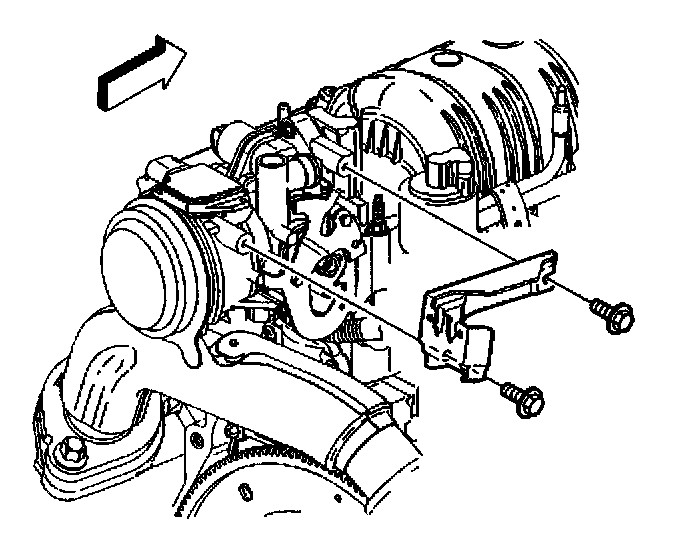

8. Install the accelerator control cable bracket.
9. Install the accelerator control cable bracket bolts.
Tighten the accelerator control to bracket bolts 16 Nm (12 ft. lbs.).

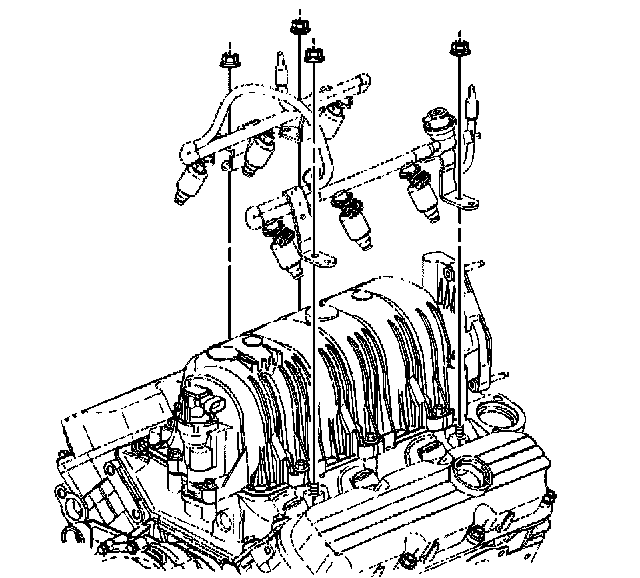

10. Install the fuel injector rail.
11. Install the fuel rail nuts.
Tighten the fuel injector rail nuts to 10 Nm (89 inch lbs.).
12. Install the spark plug wires.
