Catalytic Converter Description

Notice: The catalytic converters require the use of unleaded fuel only. Using leaded fuel will damage the catalytic converters and other emission system components.

The catalytic converter is an emission-control device added to the gasoline engine exhaust system to reduce hydrocarbons, carbon monoxide, and nitrogen oxide pollutants from the exhaust gas. The gasoline engine in this vehicle has a three-way catalytic converter that uses rhodium. The catalyst in the converter is not serviceable.

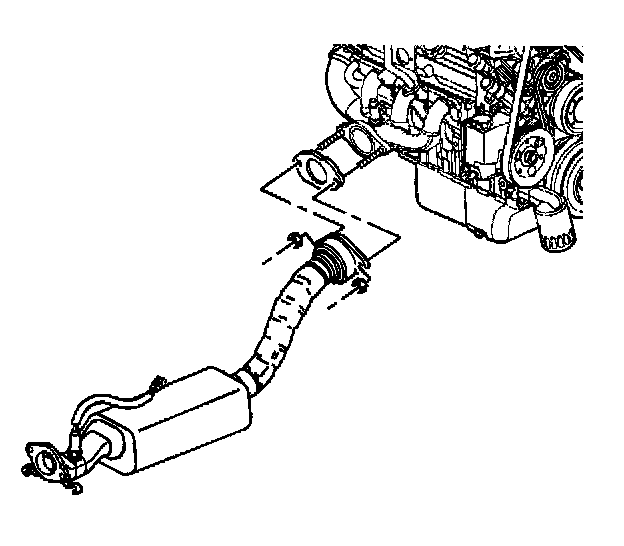

The three-way catalytic converter and the exhaust manifold pie gasket for the 3100 engine are shown above.
The three-way catalytic converter is mounted in the exhaust manifold pipe located between the right (rear) exhaust manifold and the exhaust system.

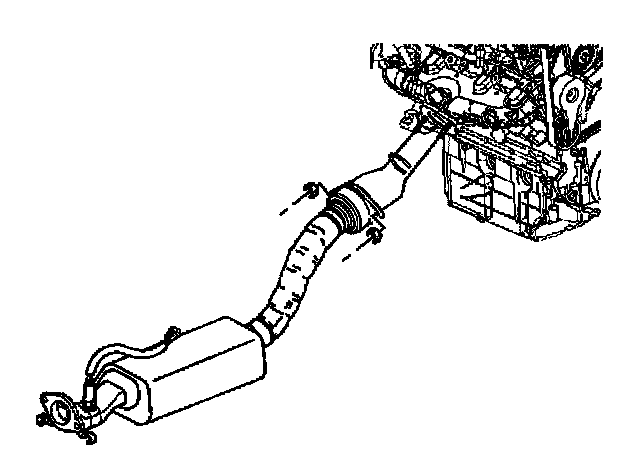

The three-way catalytic converter and the exhaust manifold pie gasket for the 3800 engine are shown above.
The system uses a exhaust manifold pipe gasket and a catalytic converter gasket for sealing. Always replace the exhaust manifold pipe gasket and the catalytic converter gasket when a service procedure requires disrupting the flanged joints.
The three-way catalytic converter has a tapped hole for the heated oxygen sensor (HO2S).





The catalytic converter gasket and the heated oxygen sensor are shown above.
