HVAC System - Manual

REMOVAL PROCEDURE






1. Disconnect the battery ground negative cable.
2. Remove the right side instrument panel insulator.
3. Disconnect the blower motor electrical connector.

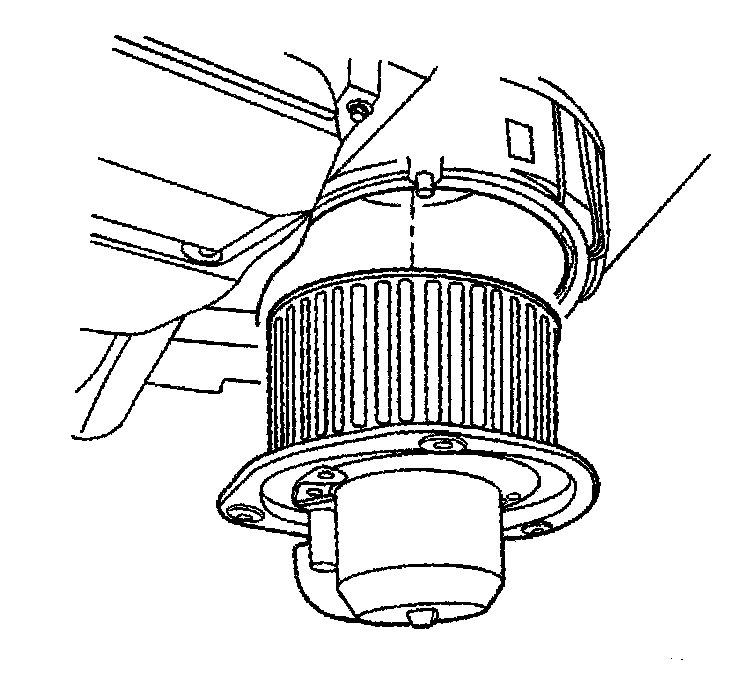

4. Disconnect the blower motor cooling hose.
5. Remove the (3) blower motor mounting bolts.
6. Remove the blower motor.

INSTALLATION PROCEDURE






1. Install the blower motor.
2. Install the blower motor bolts.

Tighten
Tighten the blower motor bolts to 20 N.m (14 lb ft).

3. Connect the blower motor cooling hose.






4. Connect the blower motor electrical connector.
5. Install the right side instrument panel insulator.
6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Starting and Charging Systems.
