Daytime Running Lamp: Service and Repair

DRL Ambient Light Sensor Replacement





REMOVAL PROCEDURE
1. Remove the Instrument Panel (IP) upper trim pad.

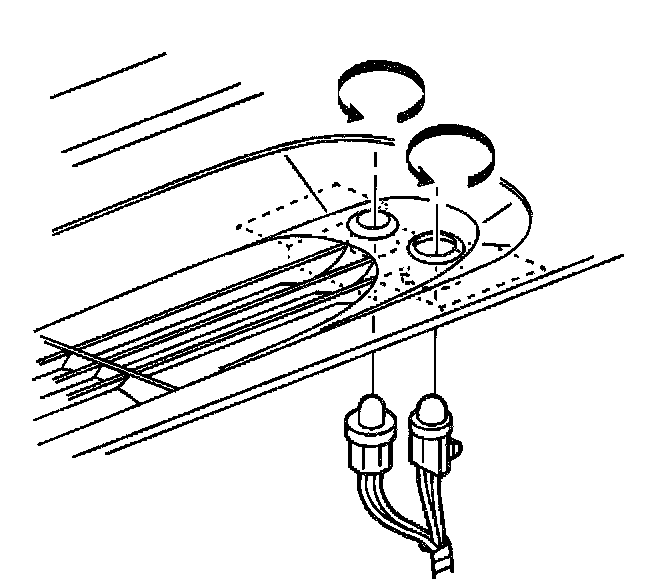

2. Rotate the ambient light sensor counterclockwise to release from the IP upper trim pad.
3. Disconnect the electrical connector from the ambient light sensor.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the ambient light sensor.
2. Install the ambient light sensor to the IP upper trim pad, then rotate clockwise to secure.
3. Install the IP upper trim pad.
