EVAP System Purge/Pressure Diagnostic Station J 41413

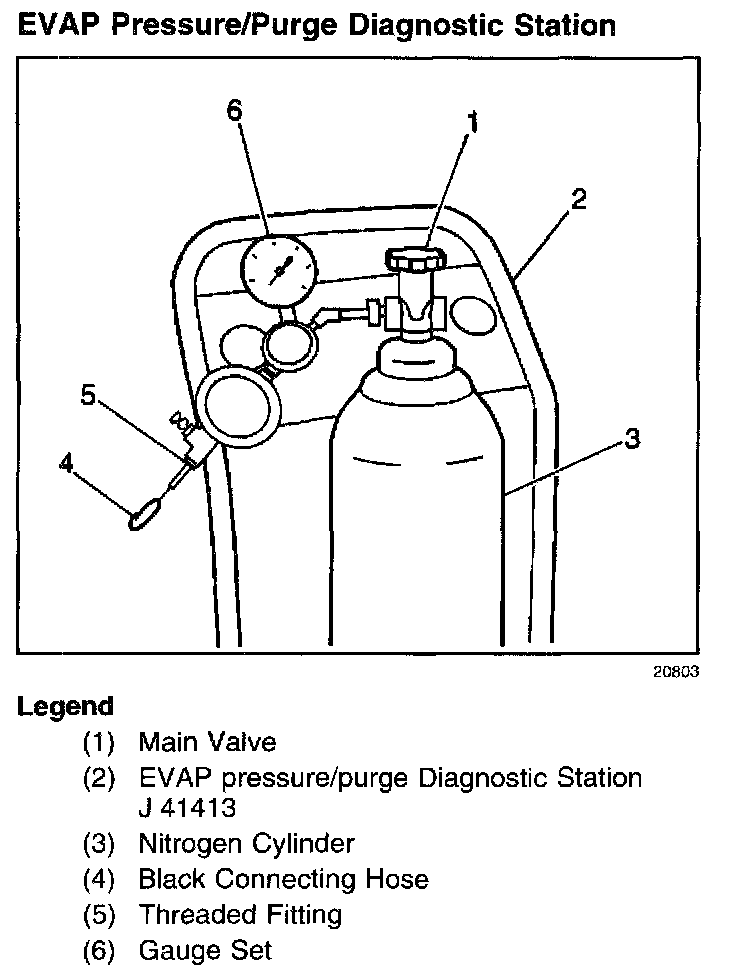

EVAP Pressure/Purge Diagnostic Station:

The EVAP system purge/pressure diagnostic station is used to clear carbon released into the EVAP system by the canister. Carbon released into the EVAP system may cause EVAP system components to be inoperative. If diagnosis indicates that an EVAP system component needs to be replaced, the system should be checked for released carbon. A released carbon condition must be corrected before replacing any EVAP system component. Procedures for checking the EVAP system for released carbon and for correcting a released carbon condition are in the Diagnostic Aids for the applicable DTC tables.
