Installation Procedure

Important: Verify that the release lever at the top of the bracket is in the full up position.

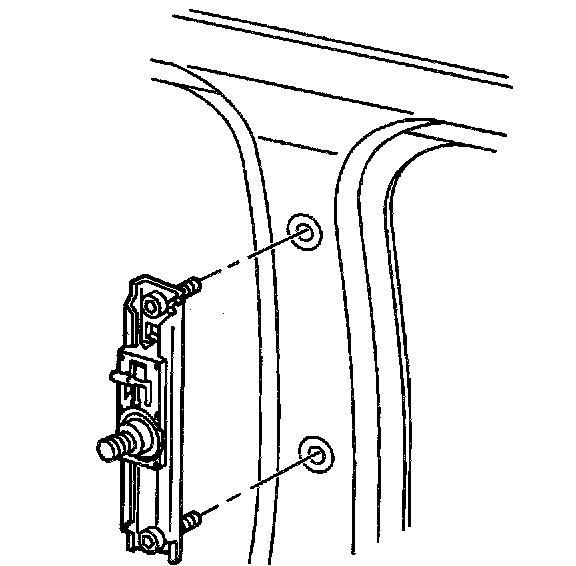

1. Position shoulder belt guide adjuster bracket to the center pillar.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the shoulder belt guide belt adjuster bracket bolts.

Tighten
Tighten the shoulder belt guide adjuster bracket bolts to 42 N.m (31 lb ft).

3. Install the upper center pillar trim panel.
4. Install the guide loop to the guide adjuster bracket.
5. Install the guide loop nut.

Tighten
Tighten the guide loop nut to 42 N.m (31 lb ft).

6. Close the guide loop cover.
