Battery Not Operating Properly

Battery Not Operating Properly (Part 1 Of 4):

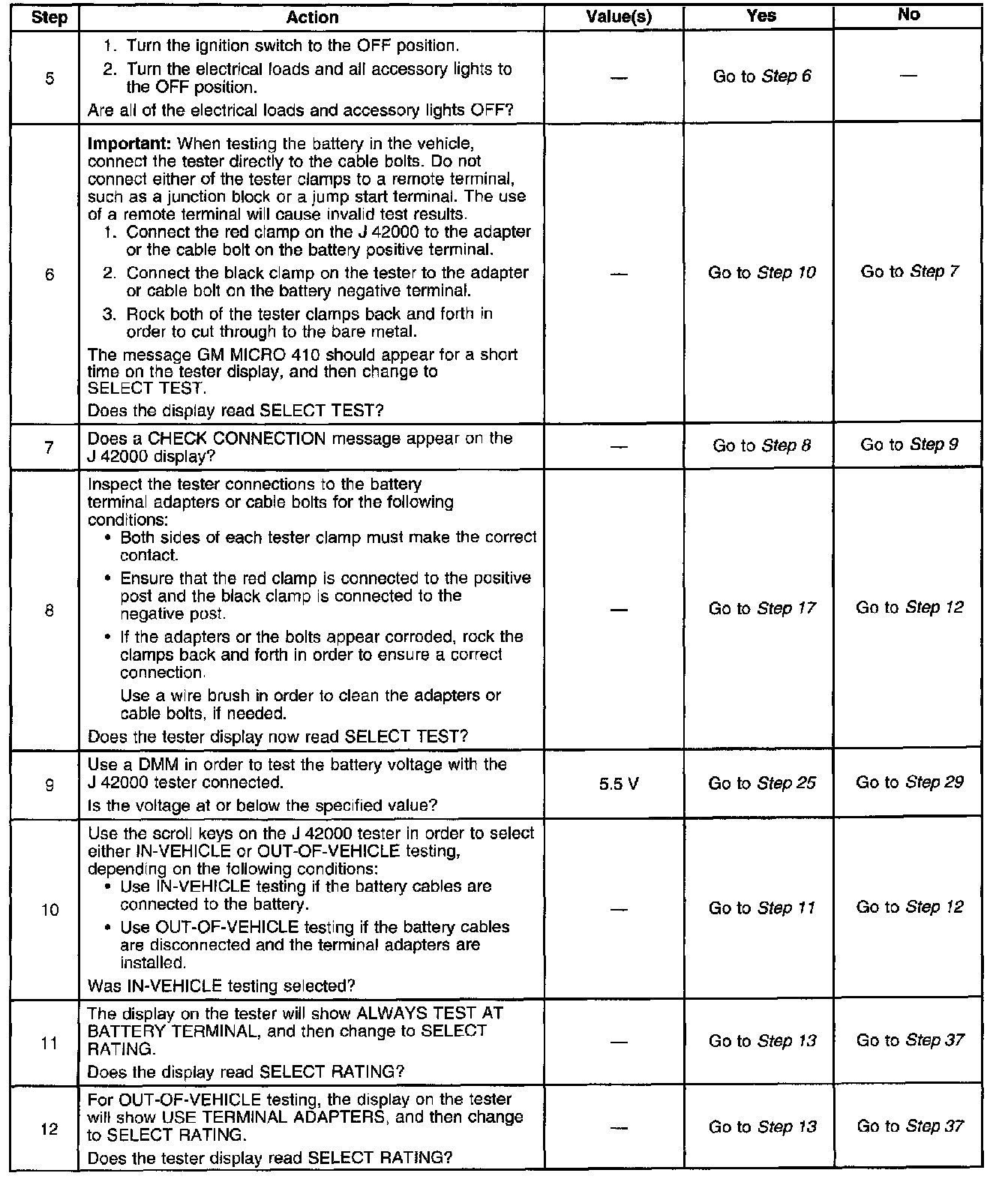

Battery Not Operating Properly (Part 2 Of 4):

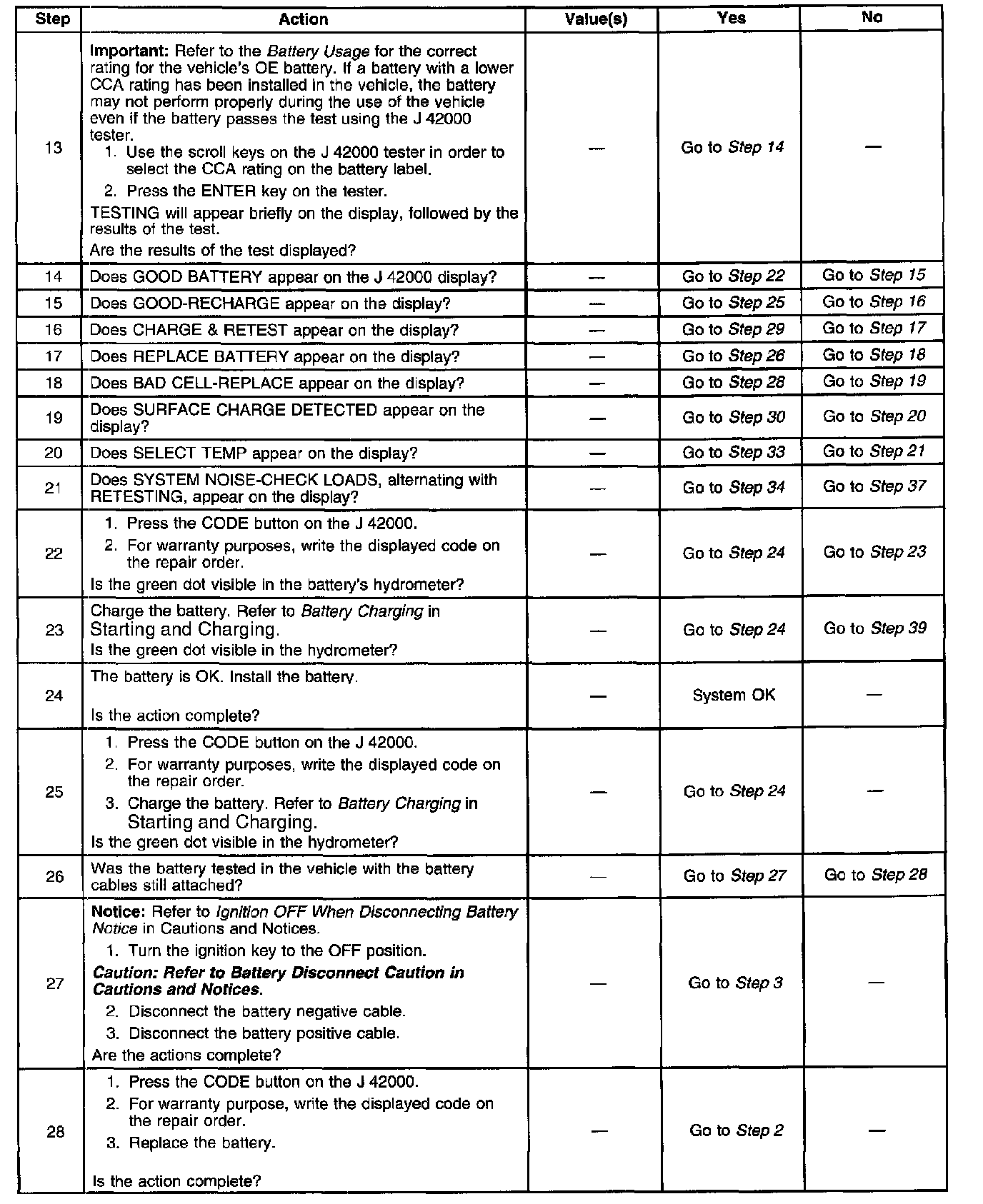

Battery Not Operating Properly (Part 3 Of 4):

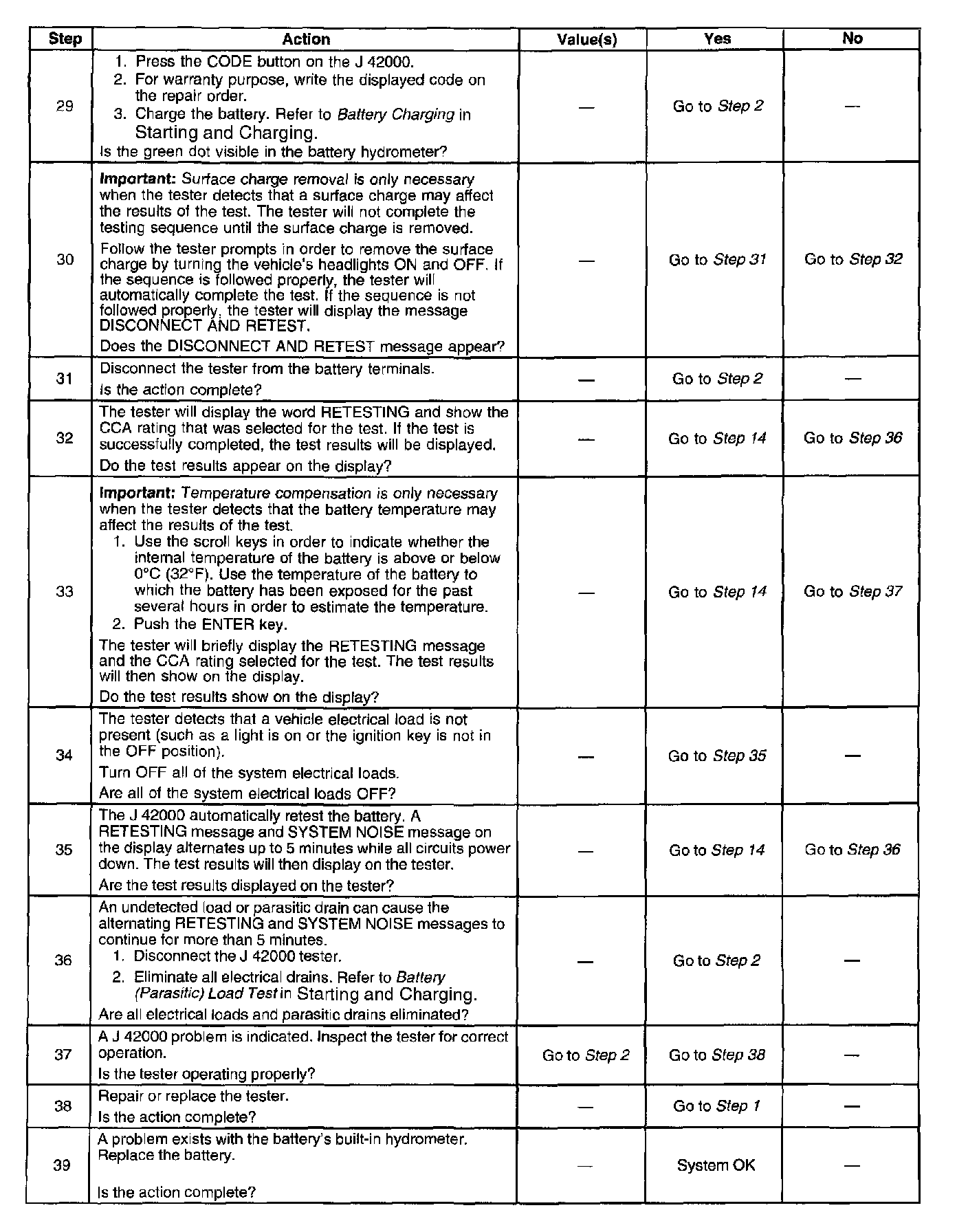

Battery Not Operating Properly (Part 4 Of 4):

CAUTION: Batteries produce explosive gases, contain corrosive acid, and supply levels at electrical current high enough to cause burns. There fore, to reduce the risk of personal injury when working near a battery:
- Always shield your eyes and avoid leaning over the battery whenever possible.
- Do not expose the battery to open flames or sparks.
- Do not allow the battery electrolyte to contact the eyes or the skin. Flush immediately and thoroughly any contacted areas with water and get medical help.
- Follow each step of the jump starting procedure in order.
- Treat both the booster and the discharged batteries carefully when using the jumper cables.

IMPORTANT: The battery lest using the J 42000 Battery Tester requires correct connections to the battery terminals. A failure to obtain the correct connections during the test may result in replacing the battery unnecessarily. Adhere to the following instructions in order to avoid an incorrect diagnosis due to poor connections:
- When testing the vehicle with the battery cables still connected, rock the J 42000 clips back and forth on the terminal bolt in order to cut through any coating or oxidation that may be present on the bolt.
Even new bolts contain a protective coating that may insulate or cause a resistance in the test circuit.
- If it is uncertain that correct connections can be made to the battery terminal bolts in the vehicle, perform the following steps:
1. Disconnect the battery cables.
2. Install the test adapters on the terminals.
3. Follow the instructions for testing the battery outside of the vehicle.
- If a REPLACE BATTERY result is obtained for a battery tested in the vehicle with the battery cables connected, perform the following steps:
1. Disconnect the battery cables.
2. Install the approved adapters.
3. Follow the instructions for testing the battery outside of the vehicle.
4. Replace the battery only it the second test shows a REPLACE BATTERY result.
For warranty purposes, use the test code from the second test.
- Use the approved terminal adapters.
Do not use any common bolts or a combination of bolts, nut, and washers as adapters when testing the battery.
Use the test adapters that are provided with the J 42000 tester or GM PIN 12303040 terminal adapters. If the adapters that are provided with the J 42000 tester require replacement, only use adapters with the GM P/N 12303040. Any other adapters may not contact the correct areas of the battery terminal, causing resistance that may result in an invalid battery test result.
- In order to test the top terminal, threaded stud batteries outside of the vehicle, use GM PIN 12303040 adapters.
Do not connect the tester to the plain threaded terminals.

IMPORTANT: For warranty purposes, always place the test code displayed by the tester on the repair order. The number is a unique identifier that describes the test data for a particular battery at a particular time. While the test code may occasionally repeat when retesting the same battery, it is more likely that a different code will result each time the battery is tested.
