Ignition Lock Cylinder - Disassemble

DISASSEMBLY PROCEDURE





1. Remove the upper and lower shrouds.

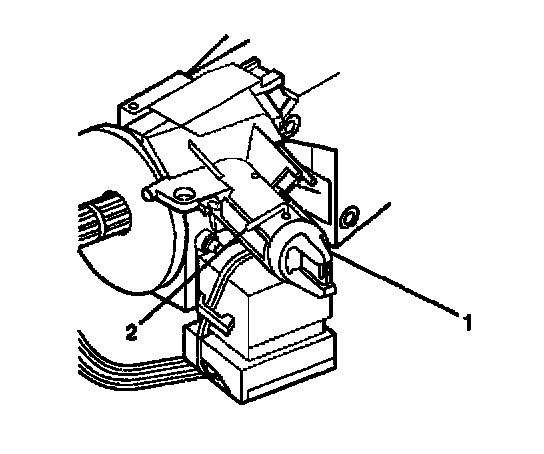

2. Put the key in the steering column lock cylinder set (1).
3. Turn the key to the "START" position.
4. Install a one sixteenth alien wrench into the hole on top of the lock module assembly (2) to release the steering column lock cylinder set retaining pin.
5. Turn the steering column lock cylinder set (1) into the "RUN" position.
6. Pull the steering column lock cylinder set (1) out from the lock module assembly.
7. Remove the key from the steering column lock cylinder set (1).
