Shift Lever - Disassemble

DISASSEMBLY PROCEDURE

- Tools Required
- J 41396 Park Lock Cable Pliers





1. Remove the upper and lower shrouds.
2. Remove the electrical BTSI actuator. With a screwdriver pry the electrical BTSI actuator away from the steering column.





3. Disconnect the park lock cable assembly (1). The lock cylinder should be in the off-lock position.
4. Insert a small screwdriver into the lock module assembly and push against the locking tab to remove.





5. Remove the hexagon flanged head bolt.

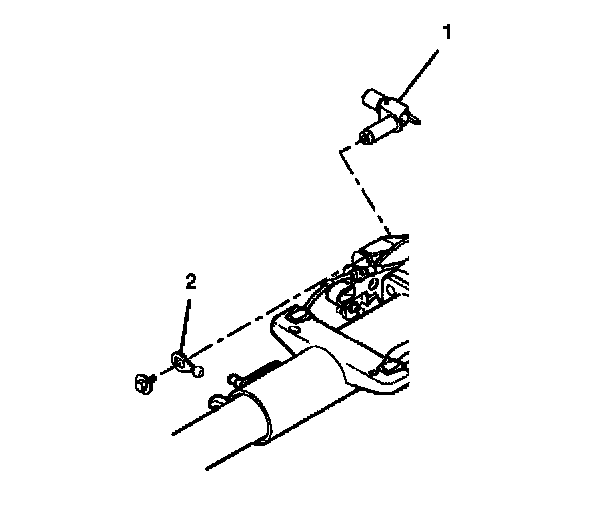

6. Remove the ball and actuator assembly (2).
7. Remove the shift lever clevis (1).

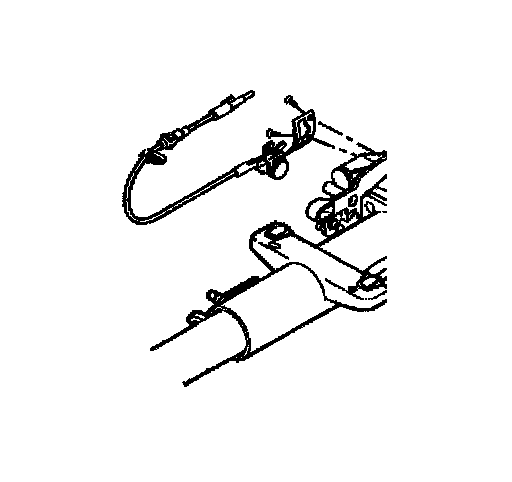

8. Remove the 2 oval head 6 lobed socket tap screws from the shift gate. Remove the park lock cable assembly.





9. Remove the hexagon flange head bolt.
10. Remove the cable shift cam assembly (1).
11. Remove the cam bushing (2) from the cable skim cam assembly.

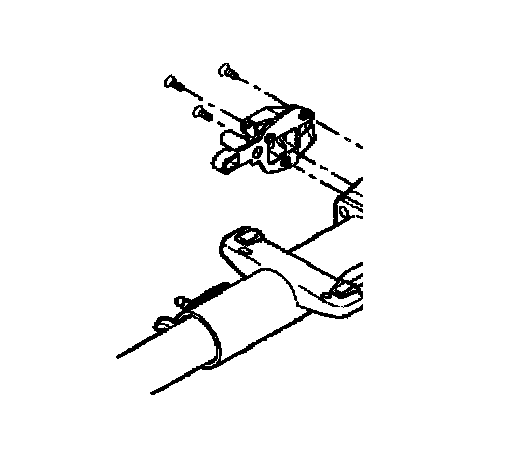

12. Remove the 3 flat head 6 lobed socket tap screws.
13. Remove the gearshift lever assembly support bracket.
