Turn Signal & Multifunction Switch - Disassemble

DISASSEMBLY PROCEDURE





1. Remove the upper and lower shrouds.
2. Remove the wire harness straps (2) from the wire harness assembly (1) and the steering column.
3. Disconnect the turn signal and multifunction switch assembly connector from the SIR coil assembly connector.

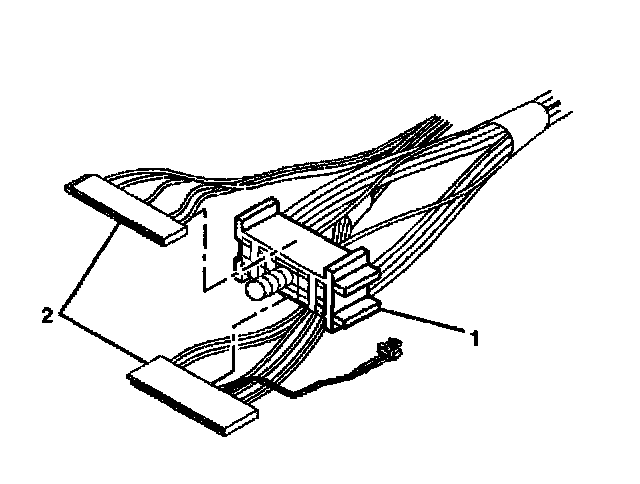

4. Slide the 2 connectors (2) of the turn signal and multifunction switch assembly out of the bulkhead connector (1).





5. Remove the 2 pan head tapping screws (1) from the turn signal and multifunction switch assembly (2).
6. Remove the turn signal and multifunction switch assembly (2) from the steering column tilt head assembly.
