Tilt Head Housing - Assemble

ASSEMBLY PROCEDURE

- Tools Required
- J 23653-SIR Lock Plate Compressor
- J 42137 Lock Plate Compressor Adapter

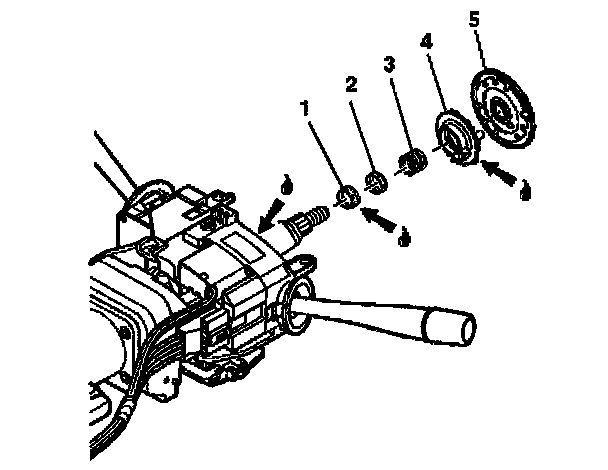

1. Install the following components onto the steering shaft assembly:
1.1. Lubricate the inner race (1) with synthetic grease.
1.2. The inner race (1).
1.3. The upper bearing inner race seat (2).
1.4. The upper bearing spring (3).
1.5. Lubricate the lower brass surface of the turn signal cancel cam assembly (4) with synthetic grease.
1.6. The turn signal cancel cam assembly (4).
1.7. The shaft lock shield assembly (5).





2. Compress the shaft lock shield assembly (2) using J 23653-SIR and J 42137.
3. Install the new bearing retainer (1) onto the steering shaft assembly.
4. Firmly seat the bearing retainer (1) into the groove on the steering shaft assembly.
5. Remove J 23653-SM and J42137 from the steering shaft assembly.
6. Install the SIR coil assembly.
