100. Output Shaft Assemble

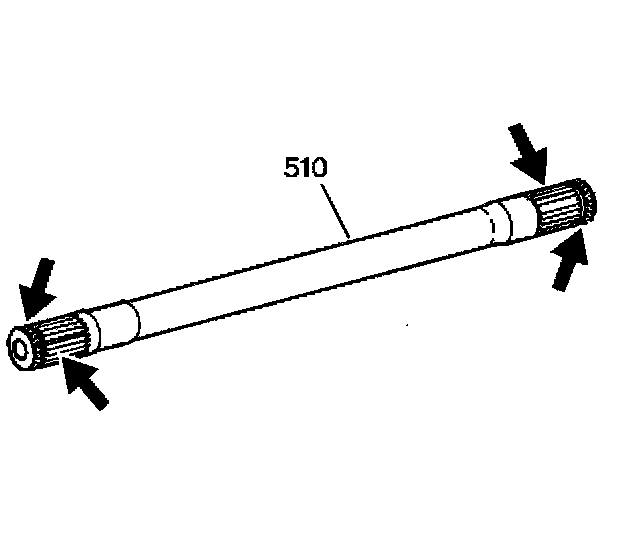

1. Inspect the output shaft (510) for:
^ Damaged bushing journals
^ Stripped splines
^ Snap ring groove damage





2. Affix the outboard drive shaft retaining ring (509) and the inboard drive shaft retaining ring (512) onto the output shaft (510).





3. Rotate the transmission so that the oil pan flange faces downward.

Important: During installation, do not push too hard or damage could occur to the bushings or the bearings.

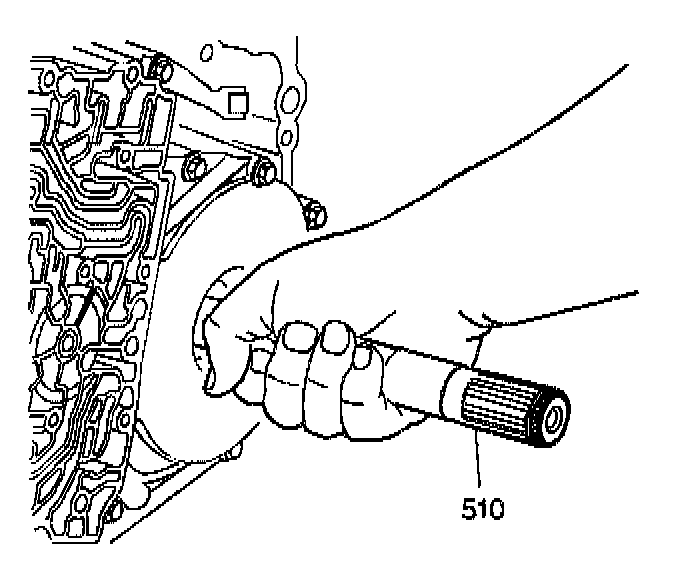

4. Carefully install the output shaft (510) into the transmission. Extend the shaft through the differential side gear.
