30. Reaction Sun Gear and Manual 2-1 Band Disassemble

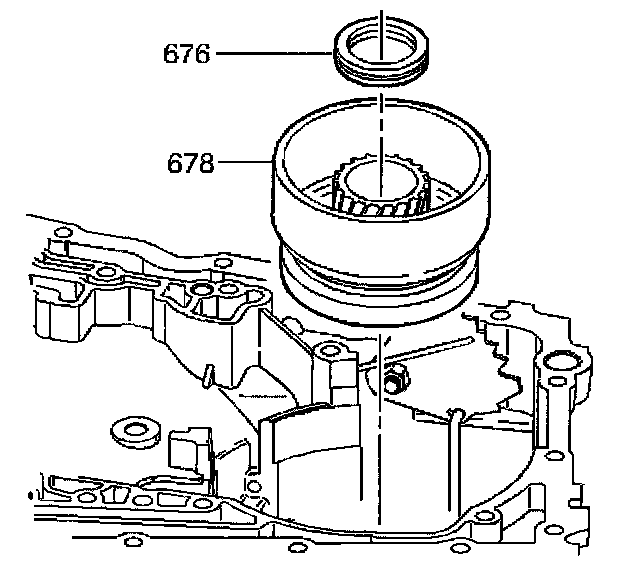

1. Remove the thrust bearing (676) from the reaction sun gear.
2. Remove the reaction sun gear assembly (678).

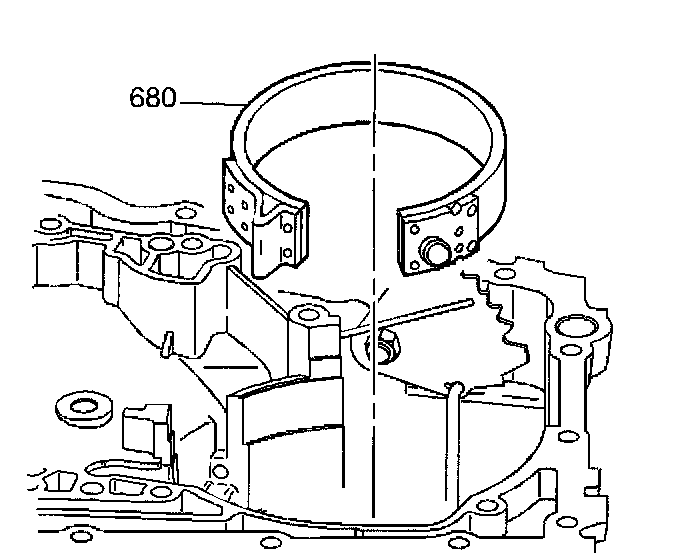

3. Tilt the band in order to disengage the manual 2-1 band assembly (680) from the anchor pin. Remove the manual 2-1 band assembly from the case.
