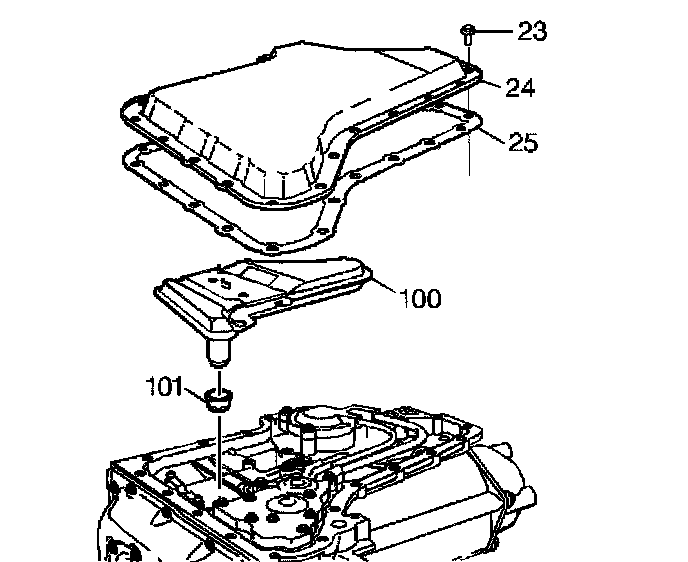

5. Bottom Pan and Filter Disassemble

1. Remove the 20 oil pan bolts (23).
2. Remove the oil pan (24).
3. Remove the oil pan gasket (25).
4. Use a screwdriver in order to pry the oil filter assembly (100) out of the case. Do not damage the case sealing surface.
5. Use a small screwdriver in order to pry the oil filter seal assembly (101) out of the case. Do not damage the case sealing surface.
