75. Second Clutch Housing Ball Check Valve Assemble

Important: If the ball check valve assembly (618) does not leak, do not remove the assembly.

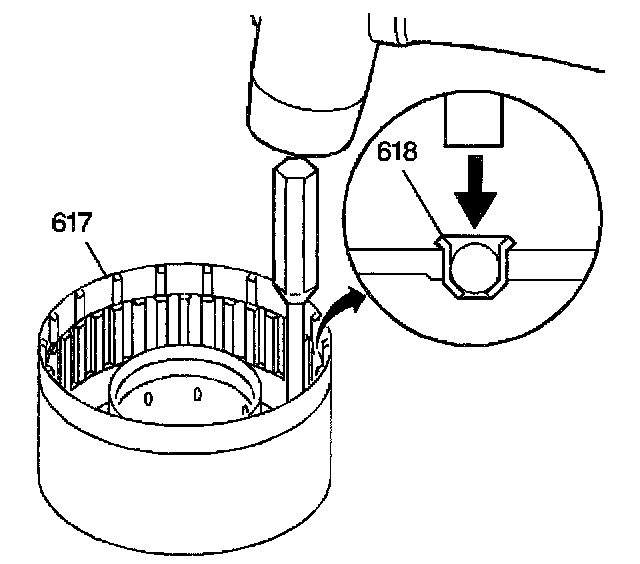

Use a 6.25 mm (1/4 inch) drift and a mallet in order to remove the ball check valve assembly (618) from the second clutch housing (617).
