93. Case Cover Bearing Disassemble

^ Tools Required
- J 8092 Driver Handle
- J 41991 Bearing Remover/Installer Driveshaft Bearing Remover/Installer

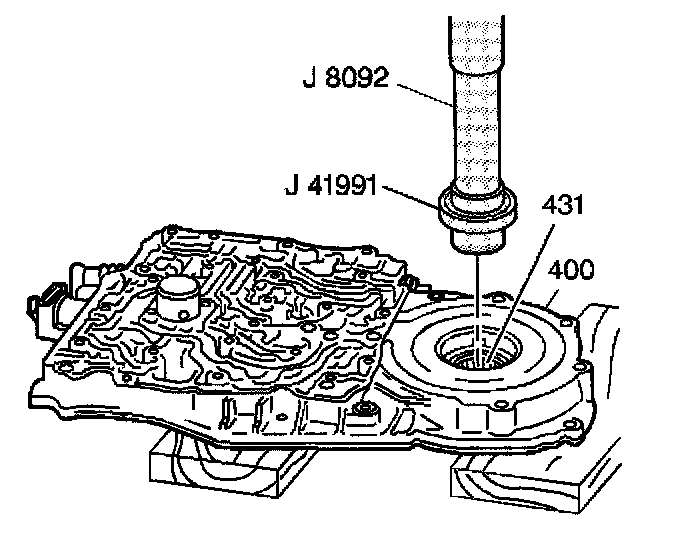

1. Assemble J 8092 and J 41991 Bearing Remover/Installer for bearing removal.
2. Place the case cover (400) on a clean, flat surface with the spacer plate mating surface up.
3. Use a hammer and J 8092 / J 41991 Bearing Remover/Installer. Drive out the drive shaft bearing assembly (431) from the case cover (400).
