Rear Fuse Block
Rear Fuse Block

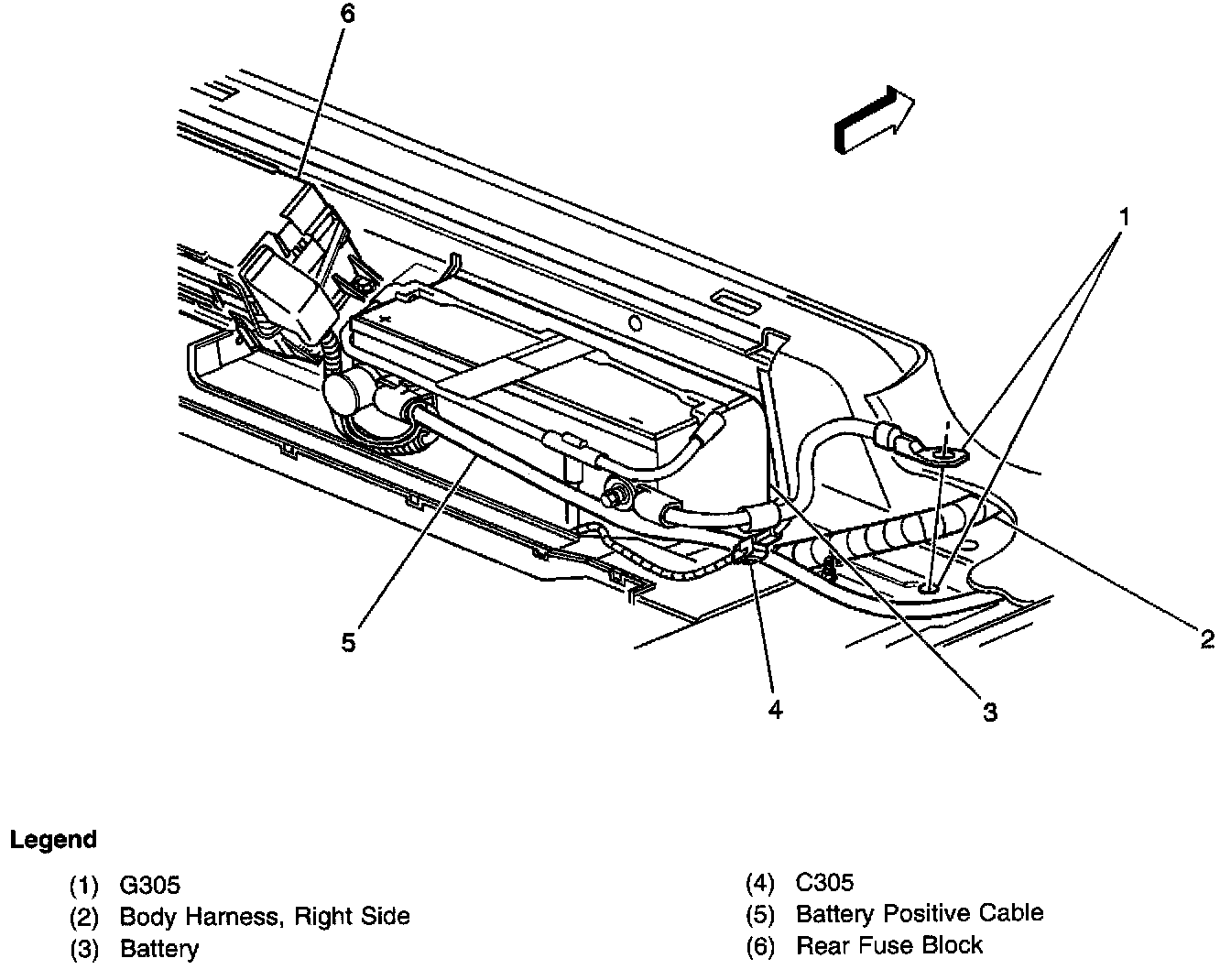

Locations View:

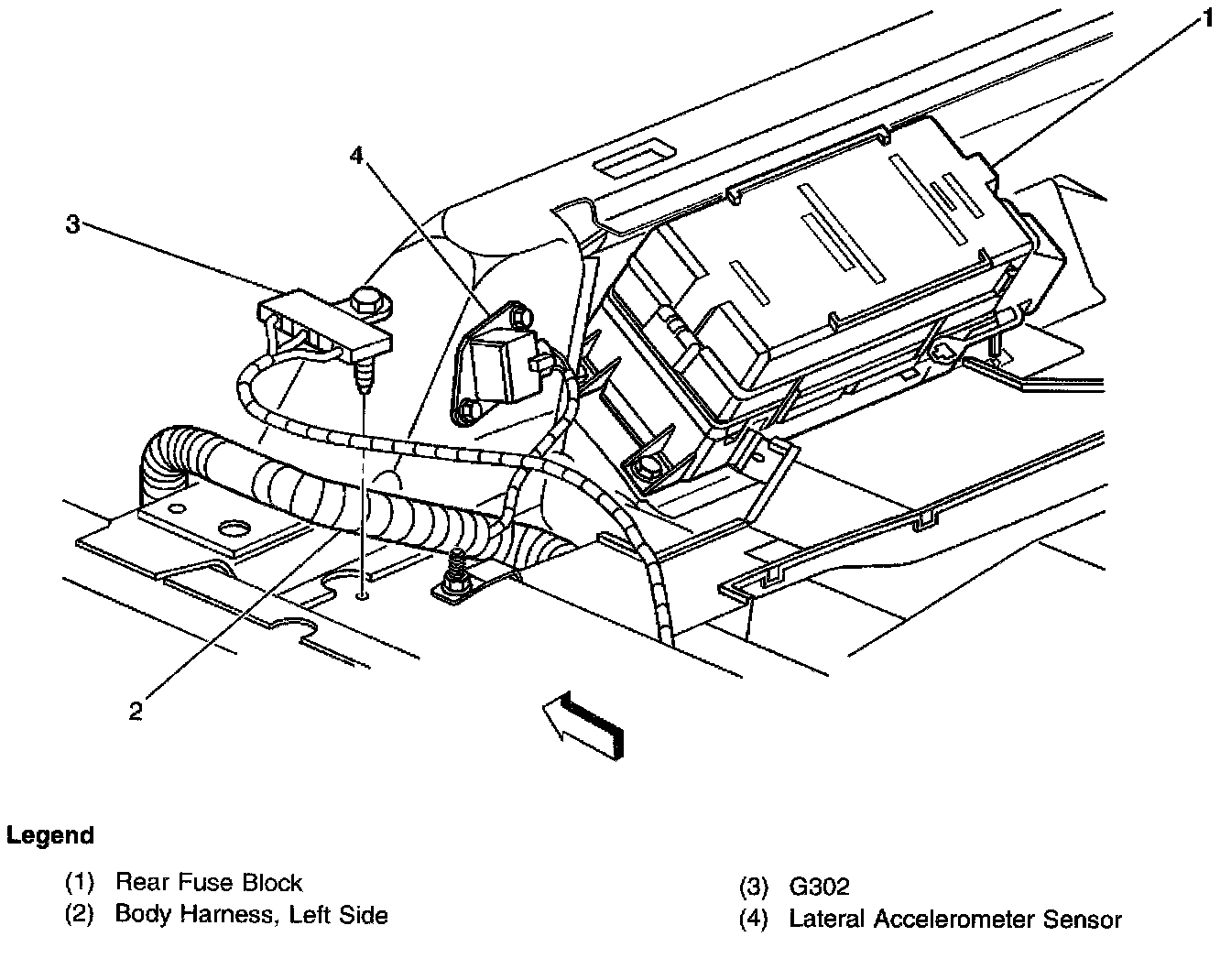

Locations View:

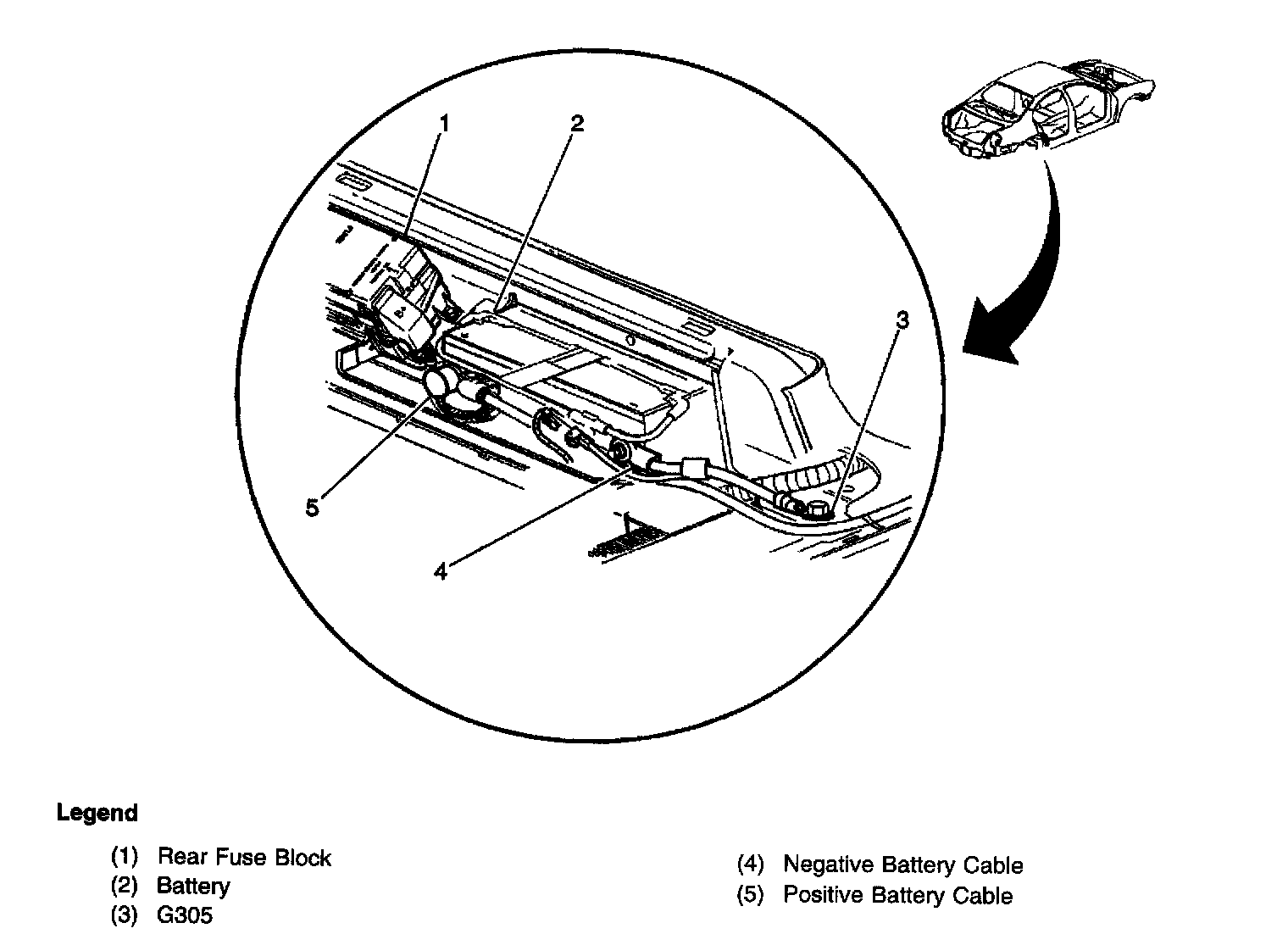

Locations View:
On the left side of the rear passenger compartment, under the rear seat
