Buick
>>
2000
>>
LeSabre V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
System Diagram
>>
RH Front Door Curtesy Lamp
RH Front Door Curtesy Lamp

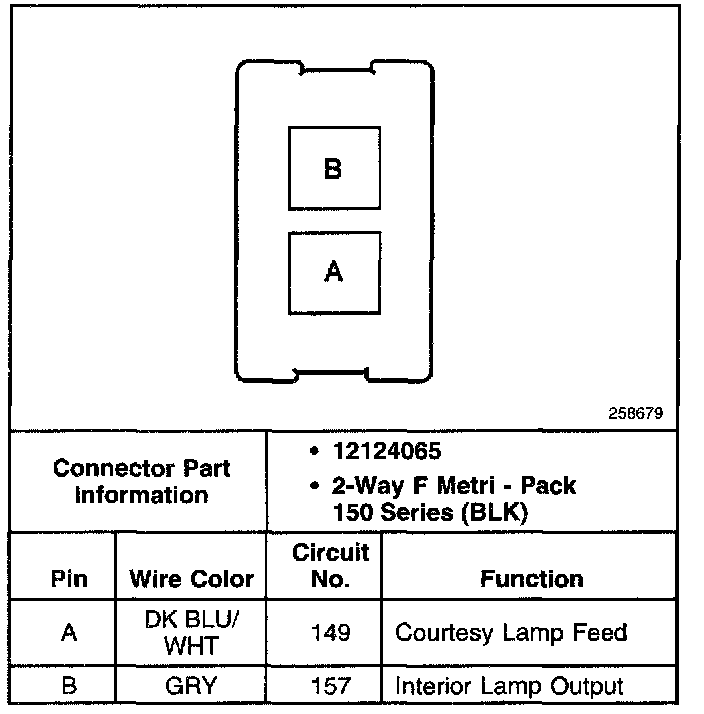

RH Front Door Courtesy Lamp:
