C410 (RH Body Harness Inline to Rear Decklid Taillamp Harness)
C410 (RH Body Harness Inline to Rear Decklid Taillamp Harness)

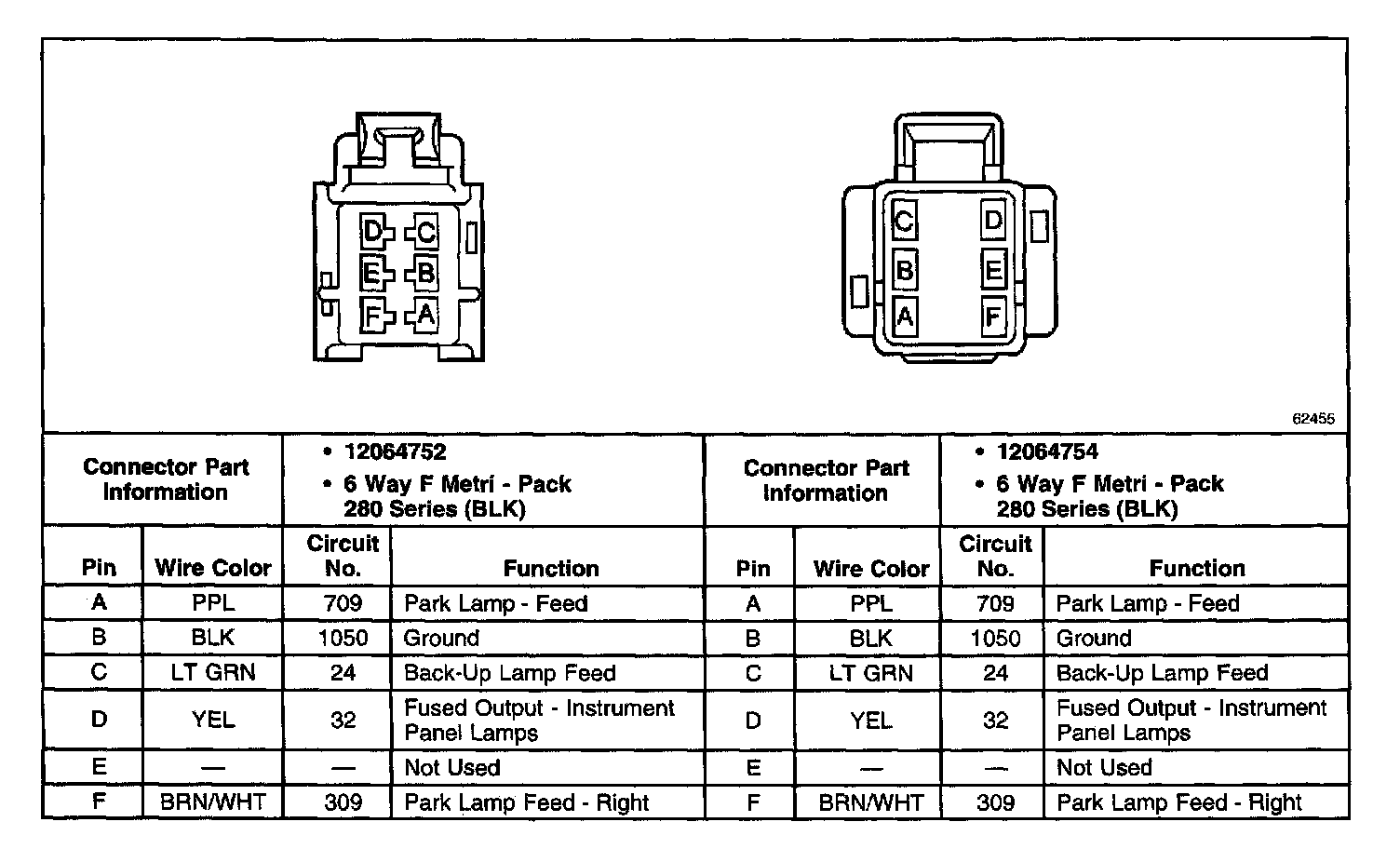

C410 (RH Body Harness Inline To Rear Decklid Taillamp Harness):
