Inside Rearview Mirror Schematics

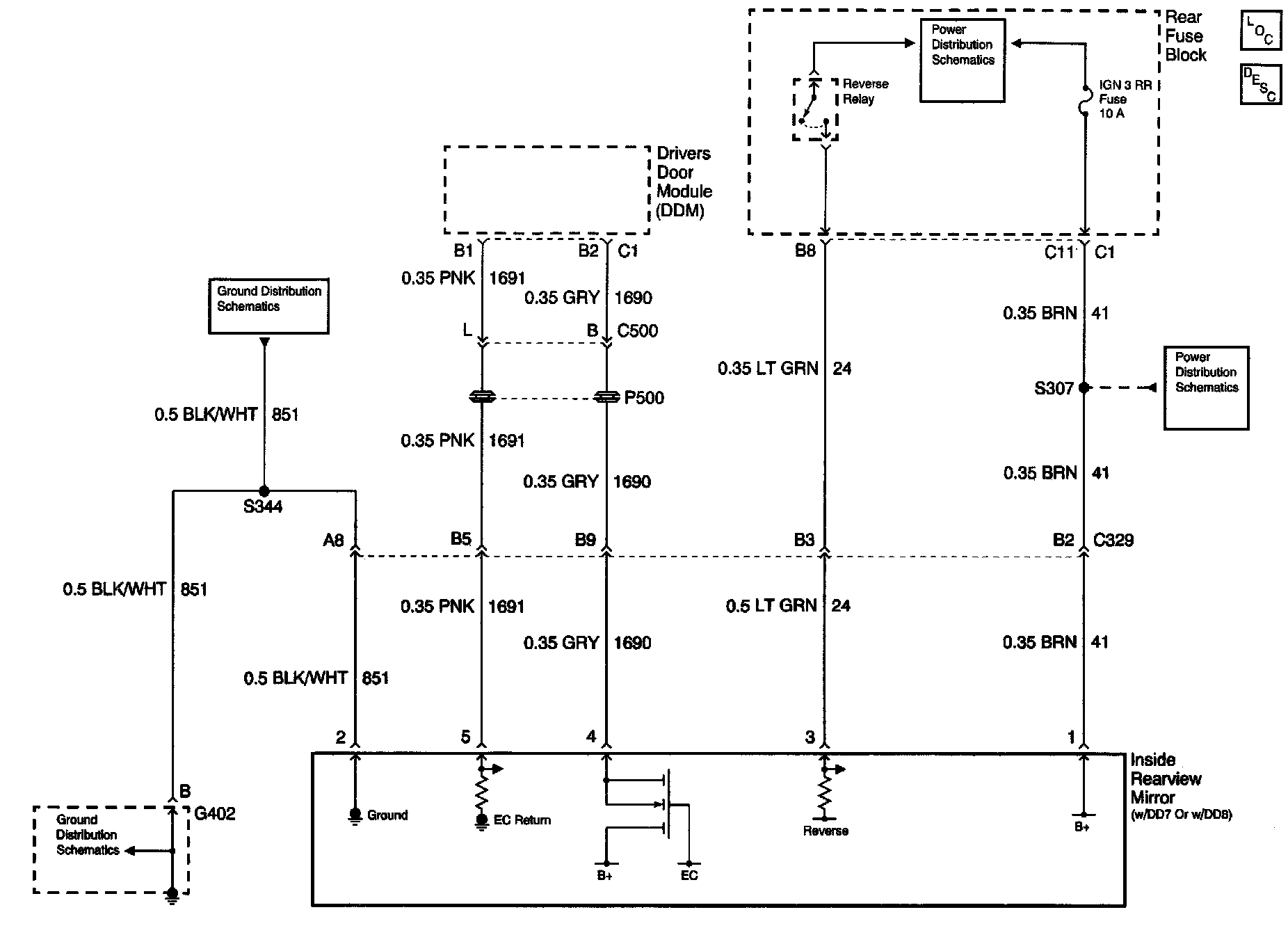

Automatic Day-Night Mirrors Schematics: Inside Rear View Mirror W/DD7 Or DD8:

For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID Application and ID
