Outside Rear View Mirrors

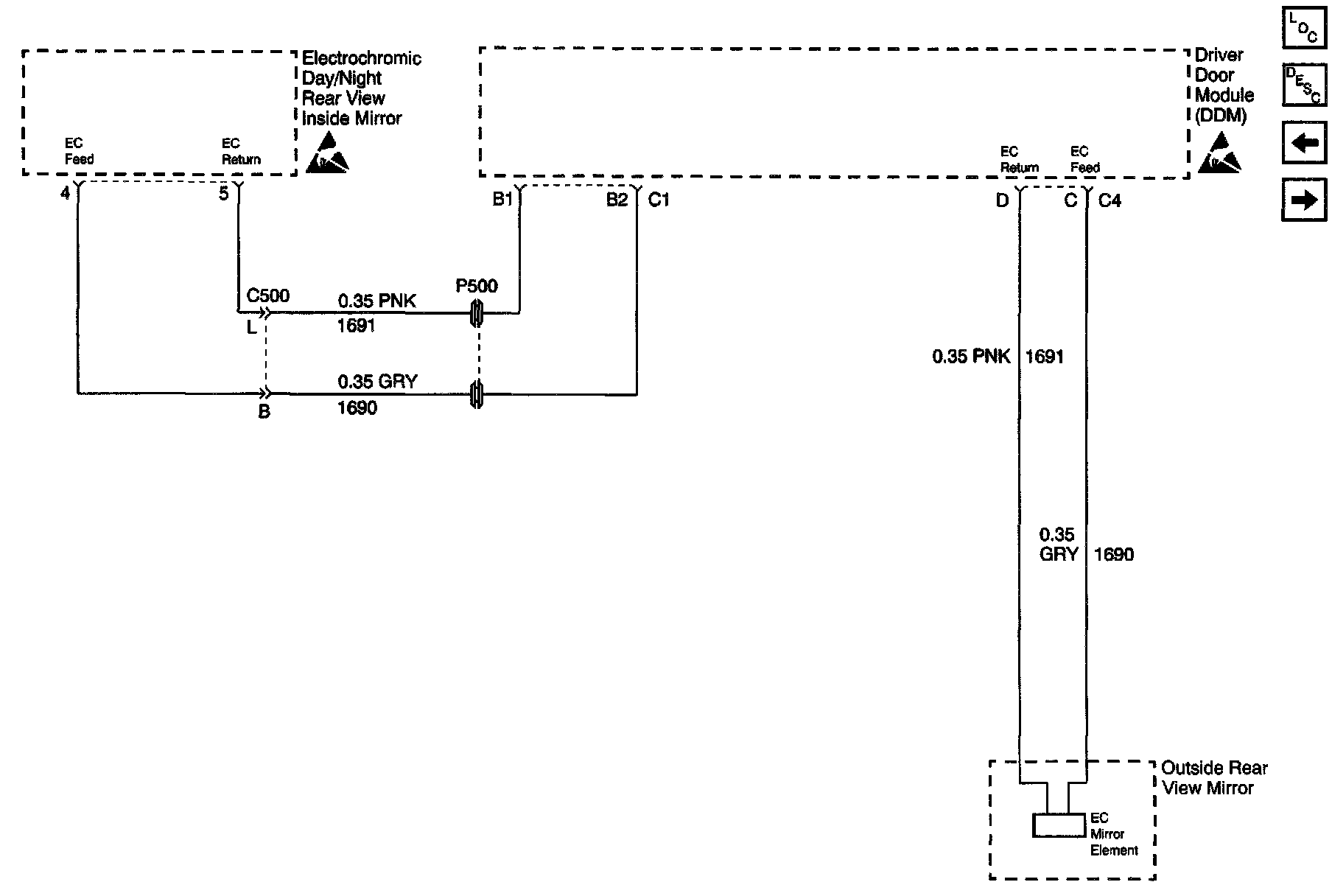

Automatic Day-Night Mirrors Schematics: Outside Rear View Mirror W/DR9:

For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID Application and ID
