COOL FAN S/P Relay and COOL FAN 1 & 2 Fuses and Relays

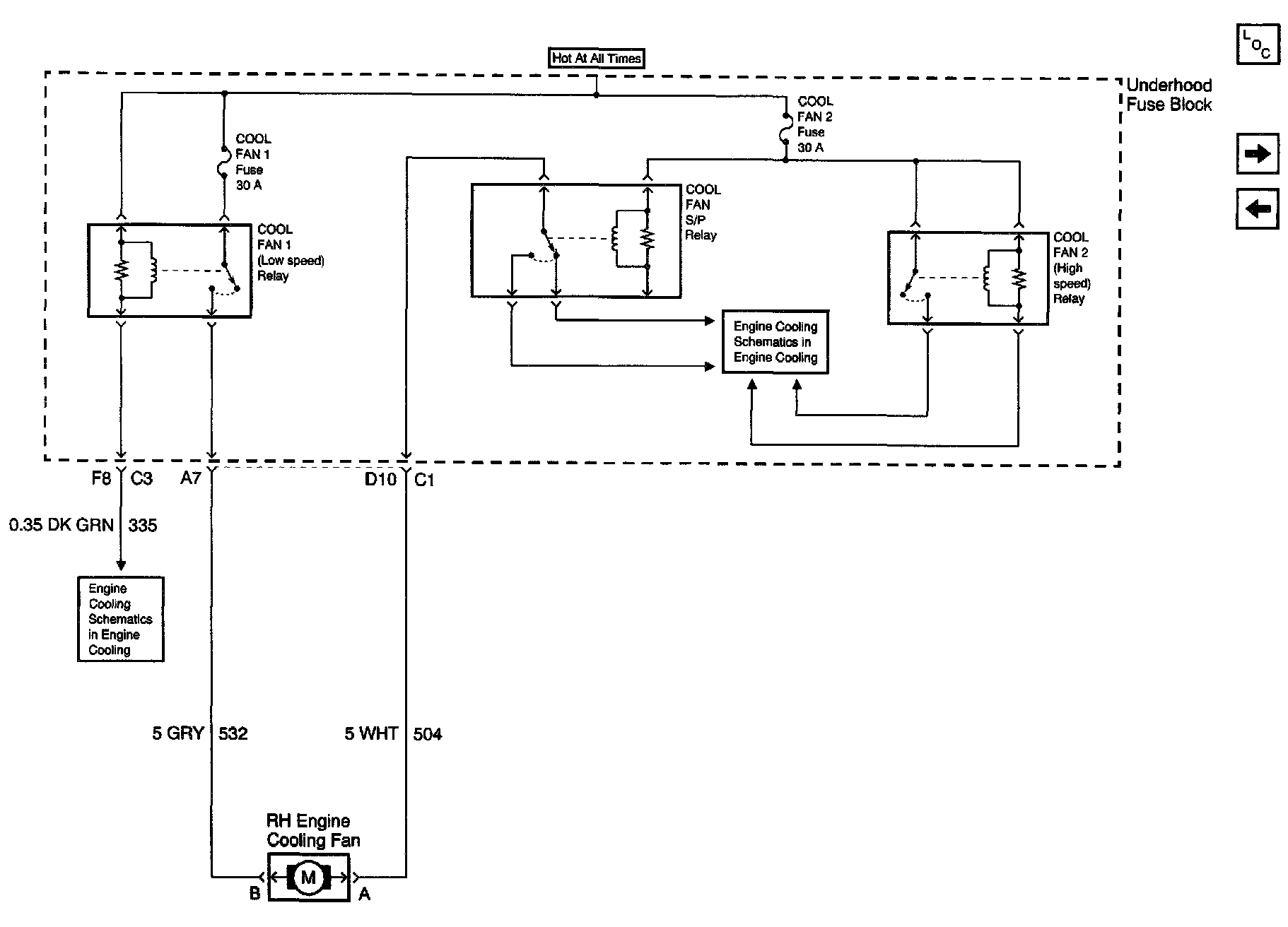

Power Distribution Schematics: COOL FAN S/P Relay And COOL FAN 1 & 2 Fuses Relays (Underhood Fuse Block):
