Battery Feed to the Rear Fuse Block

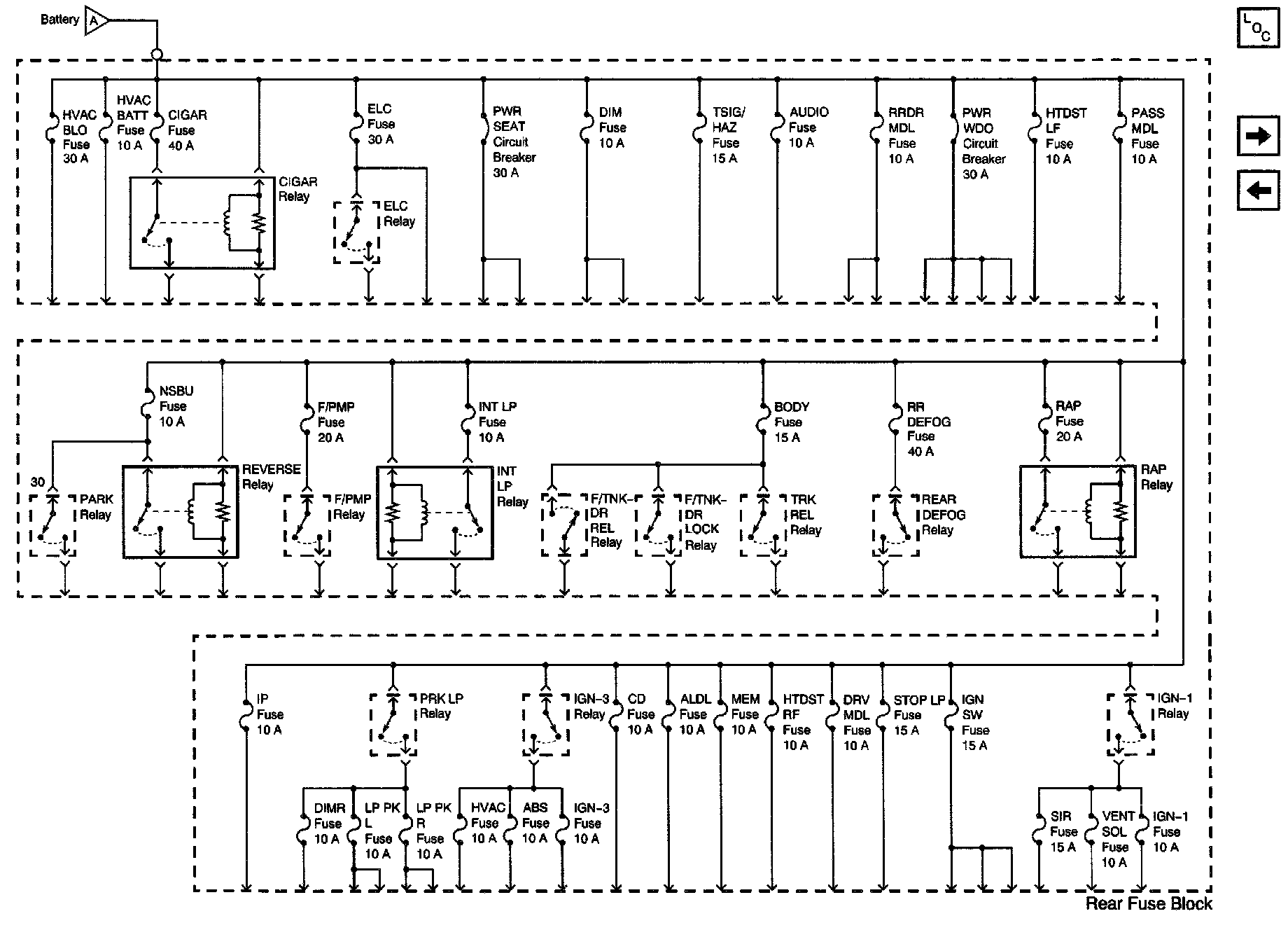

Power Distribution Schematics: Battery Feed To The Rear Fuse Block:
