S216
S216

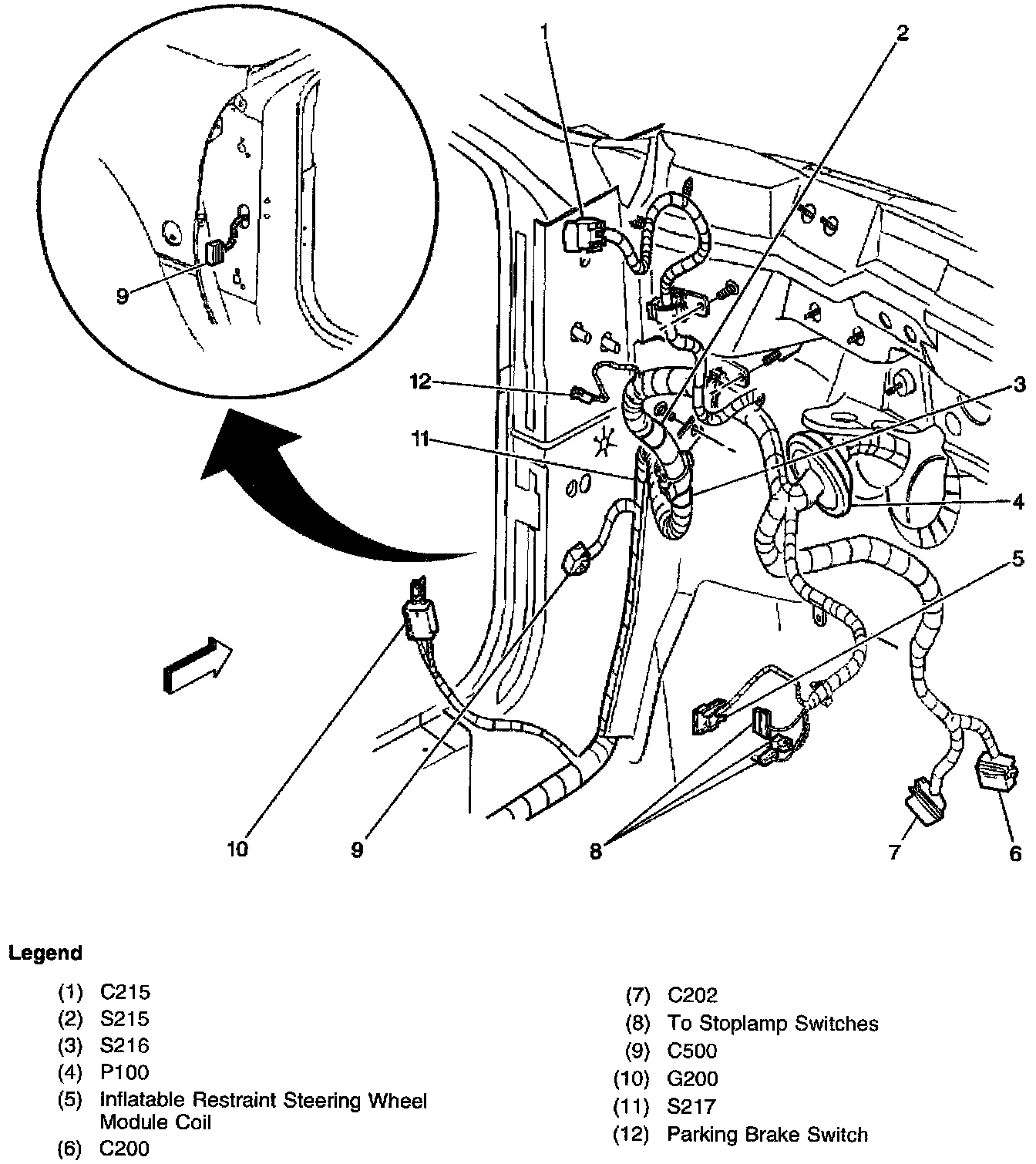

Locations View:
In the Body Harness LH side of vehicle
17.0 (6.7 in) cm
from Pass through P100
