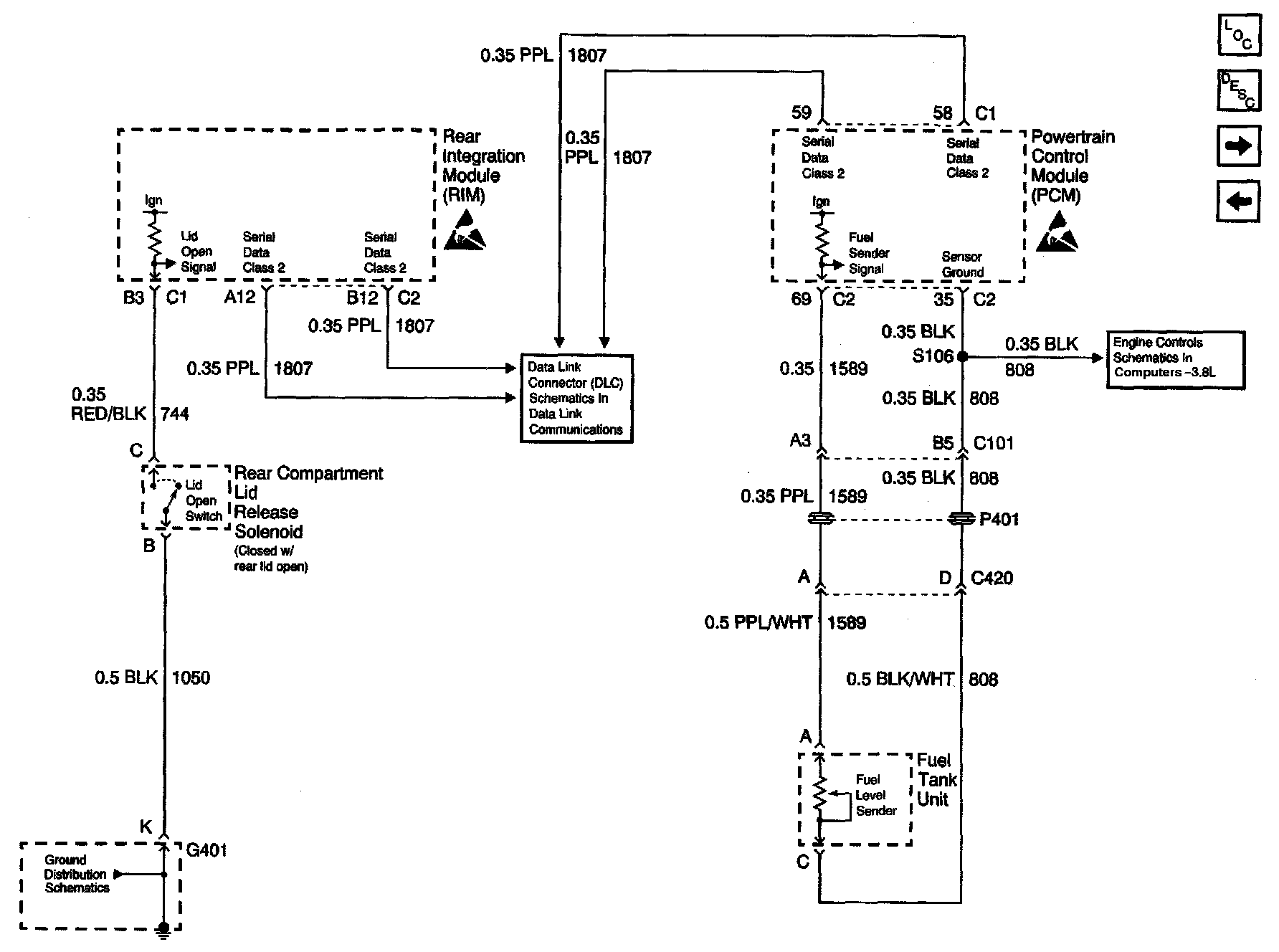

Fuel Sender Rear Compartment Lid Switch

Instrument Cluster: Analog Schematics (Fuel Sender Rear Compartment Lid Switch):
