Horns Inoperative - One Horn

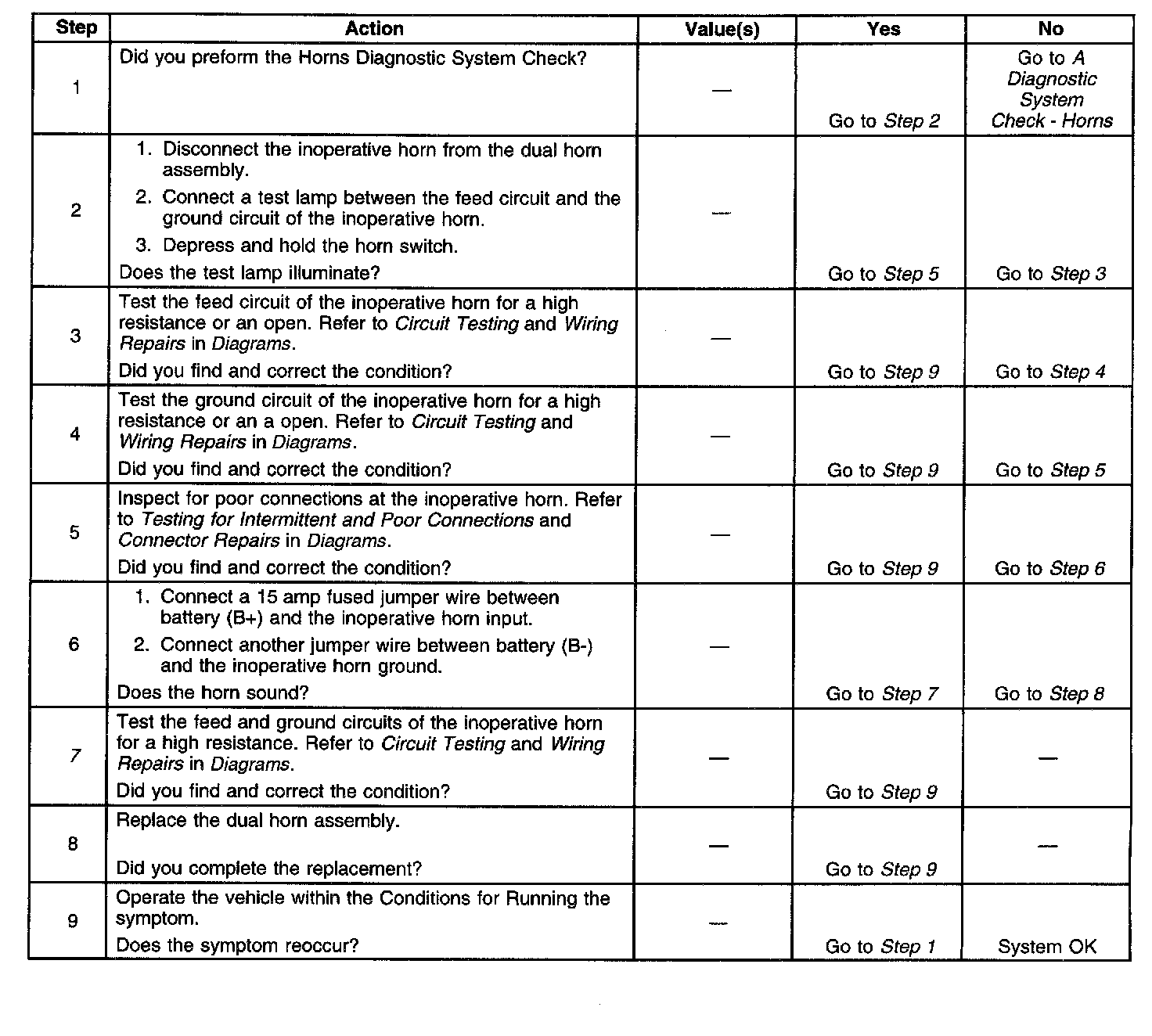

Diagnostic Chart:




TEST DESCRIPTION
The number(s) below refer to the step number(s) on the diagnostic table.
7. The horns need maximum current flow in order to operate properly. Inspect the circuits for faults that might restrict current flow.
