Battery Cable Replacement (Negative)

REMOVAL PROCEDURE
1. Remove the rear seat cushion.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.






2. Disconnect the negative battery cable from the battery.
3. Disconnect the body harness from the negative battery cable.

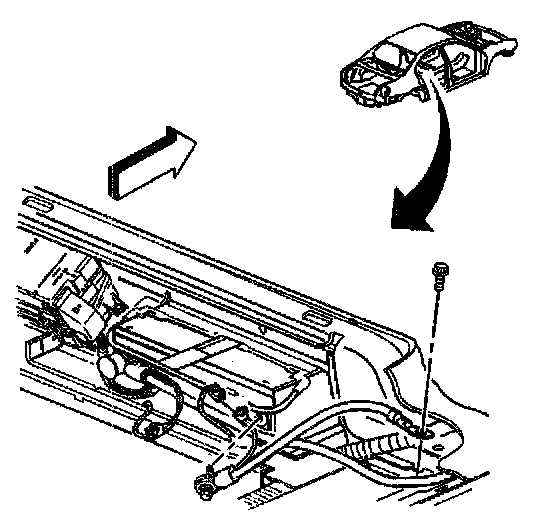

4. Disconnect the negative battery cable from the floor pan.
5. Remove the negative battery cable from the vehicle.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: When installing the negative battery cable, be sure that the cable eyelet is installed with the flat side down. Keep the crimped side facing upward.






1. Connect the body end of the negative battery cable to the floor pan.

Tighten
Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

2. Connect the negative battery cable to the battery.

Tighten
Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

3. Connect the body harness connector to the body harness.
4. Install the rear seat cushion.
