Horn: Service and Repair




REMOVAL PROCEDURE
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
2. Remove the lower air deflector.
3. Disconnect the electrical connectors from the horns.

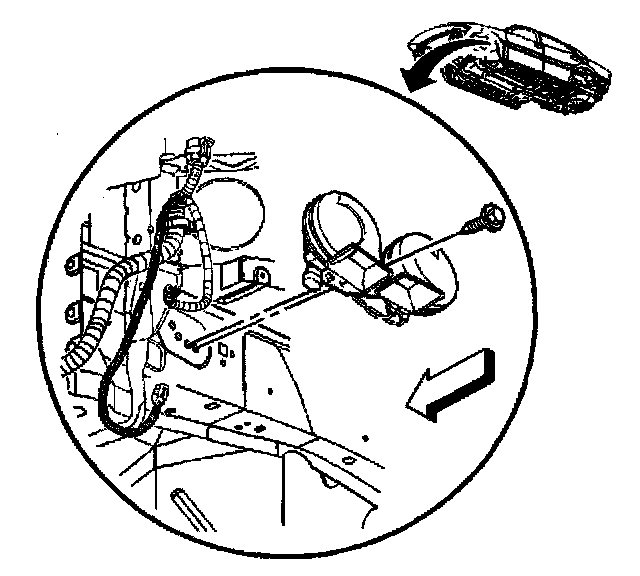

4. Remove the bolt retaining the horns to the left front frame rail.
5. Remove the horns.

INSTALLATION PROCEDURE
1. Install the horns to the left front frame rail.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the horn retaining bolts.

Tighten
Tighten the bolts to 15 N.m (11 lb ft).

3. Connect the electrical connectors to the horns.
4. Install the front air deflector.
5. Lower the vehicle.
