Steering Column Trim Covers - Disassemble

Disassembly Procedure

- Tools Required
- J41352 Modular Column Holding Fixture

1. Remove the tilt lever assembly. Refer to Tilt Lever Replacement - On Vehicle. Tilt Lever

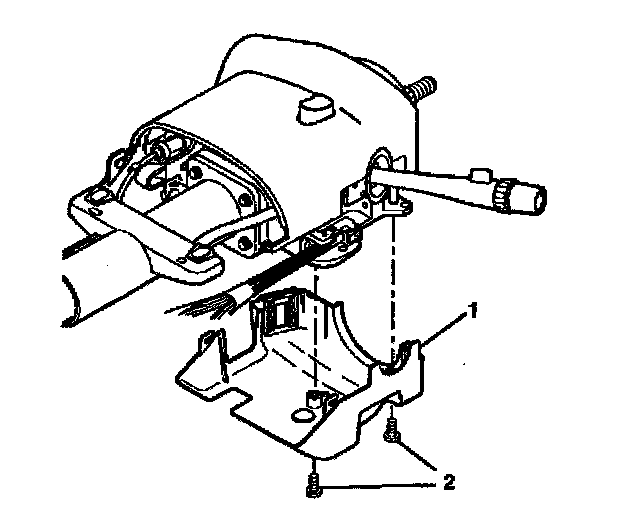

2. Remove two pan head tapping screws (2) from the lower shroud (1).
3. Remove the lower shroud (1).

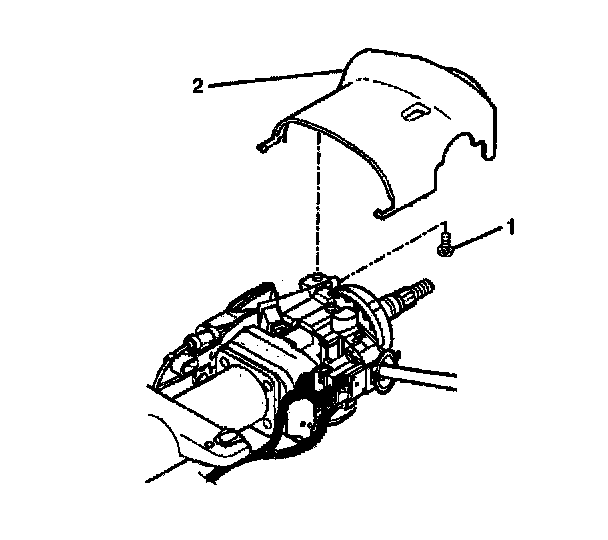

4. Remove one TORX(R) head screw (1 ) from the upper shroud (2).
5. Remove the upper shroud (2).

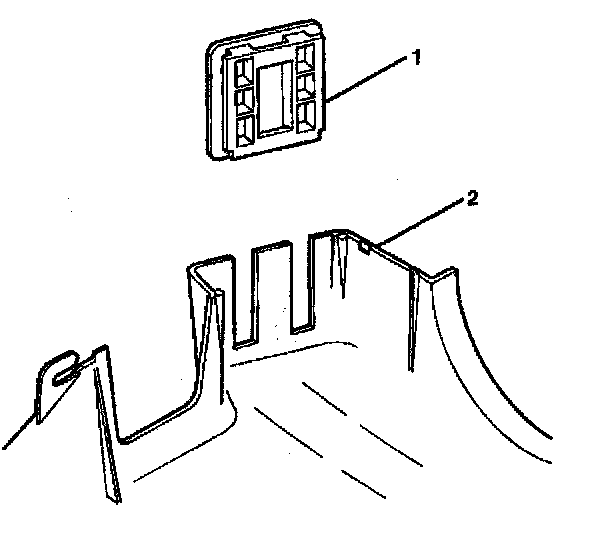

6. Remove the shroud protector (1) from the lower shroud (2).
