Turn Signal & Multifunction Switch - Assemble

Assembly Procedure

Notice: Refer to Fastener Notice in Service Precautions.

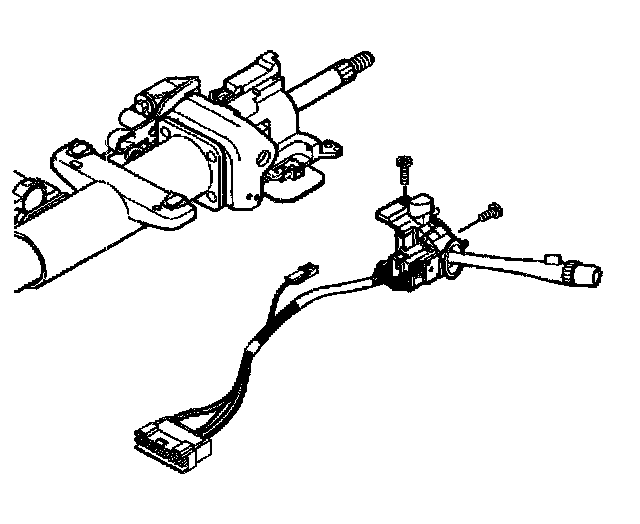

1. Install the turn signal and multifunction switch assembly and secure by using 2 pan head tapping screws.
Tighten the screws to 7 Nm (62 inch lbs.).





2. Install the wire harness assembly (4) into the wire harness strap (5).
3. Install 1 wire harness strap (2) onto the upper tilt head assembly (1).
4. Install 3 wire harness straps (3) onto the wire harness assembly (4).
5. Install the upper and lower shrouds. Refer to Steering Column Trim Covers - Assemble - Off Vehicle.
