Breather

Removal Procedure





1. Remove the throttle body air inlet duct. Refer to Air Cleaner Intake Duct Replacement in Powertrain Management.

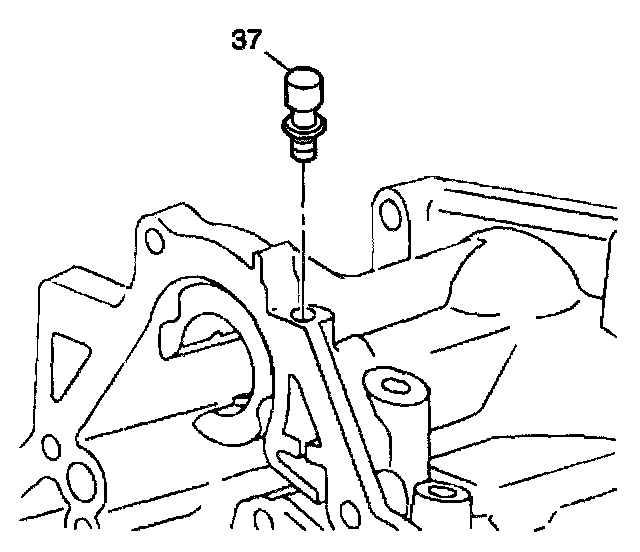

2. Remove the transaxle vent (press fit) (37) by pulling upward with pliers, gripping the ring edge at transmission surface.

Installation Procedure

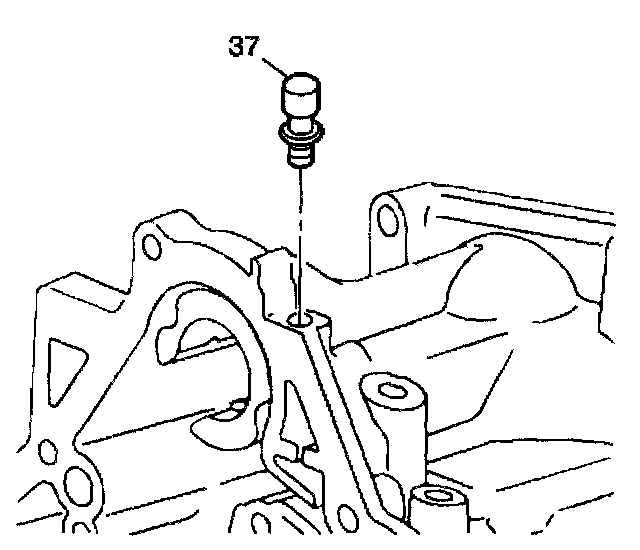

1. Install the transaxle vent (press fit) (37) by tapping gently with around ring edge with a drift until vent ring is flush with transmission case.
2. Install the throttle body air inlet duct. Refer to Air Cleaner Intake Duct Replacement in Powertrain Management.
